Material Specimen Types
Uniaxial Material Specimen Types
| Name | Gage Width | Gage Length | Specimen Length | Image | |||
|---|---|---|---|---|---|---|---|

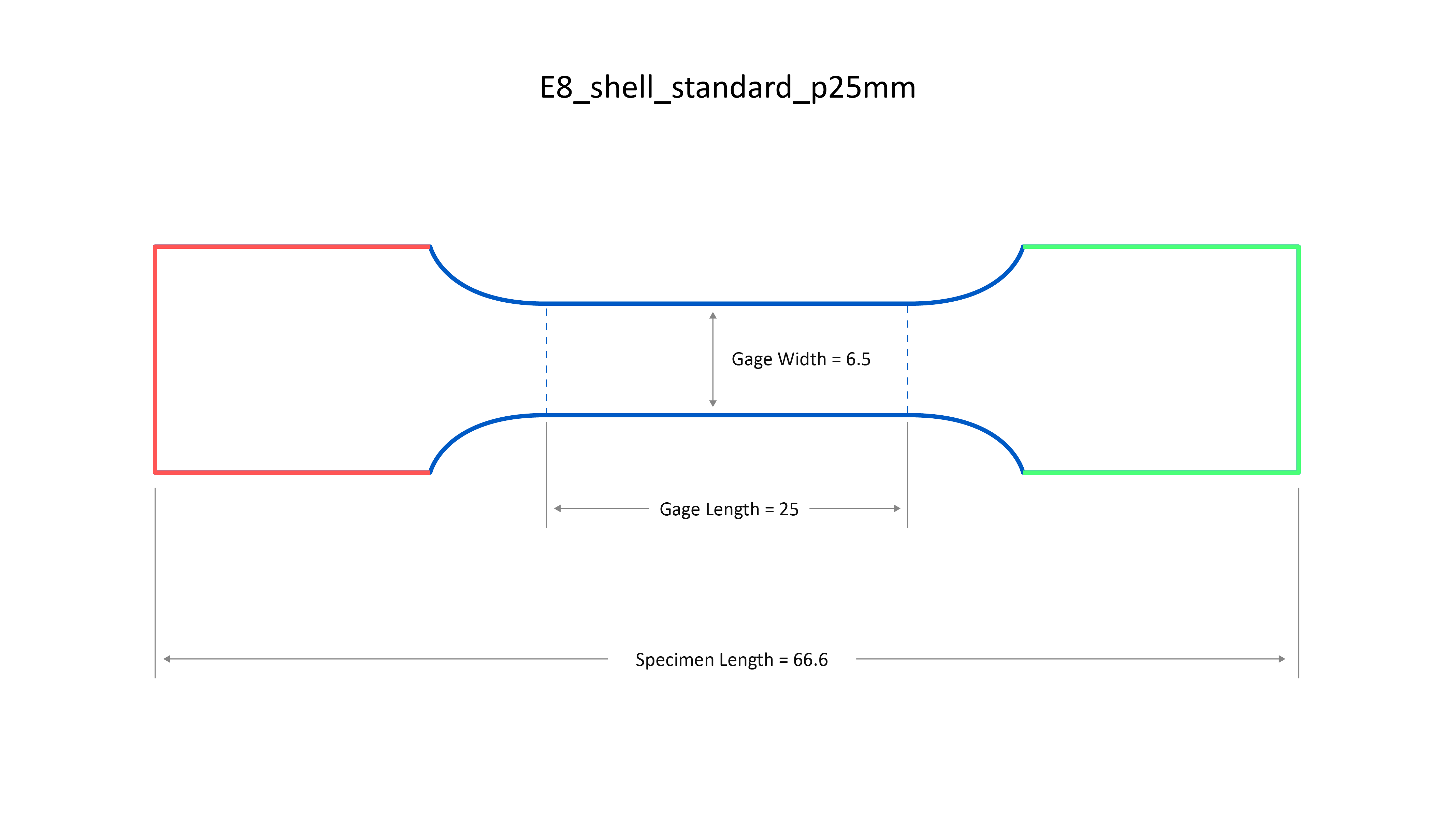

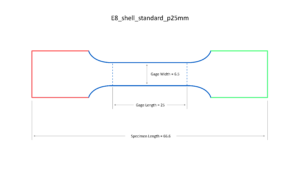

| E8_shell_standard_p25mm | 6.5 | 25 | 66.6 | 1 |  | ||

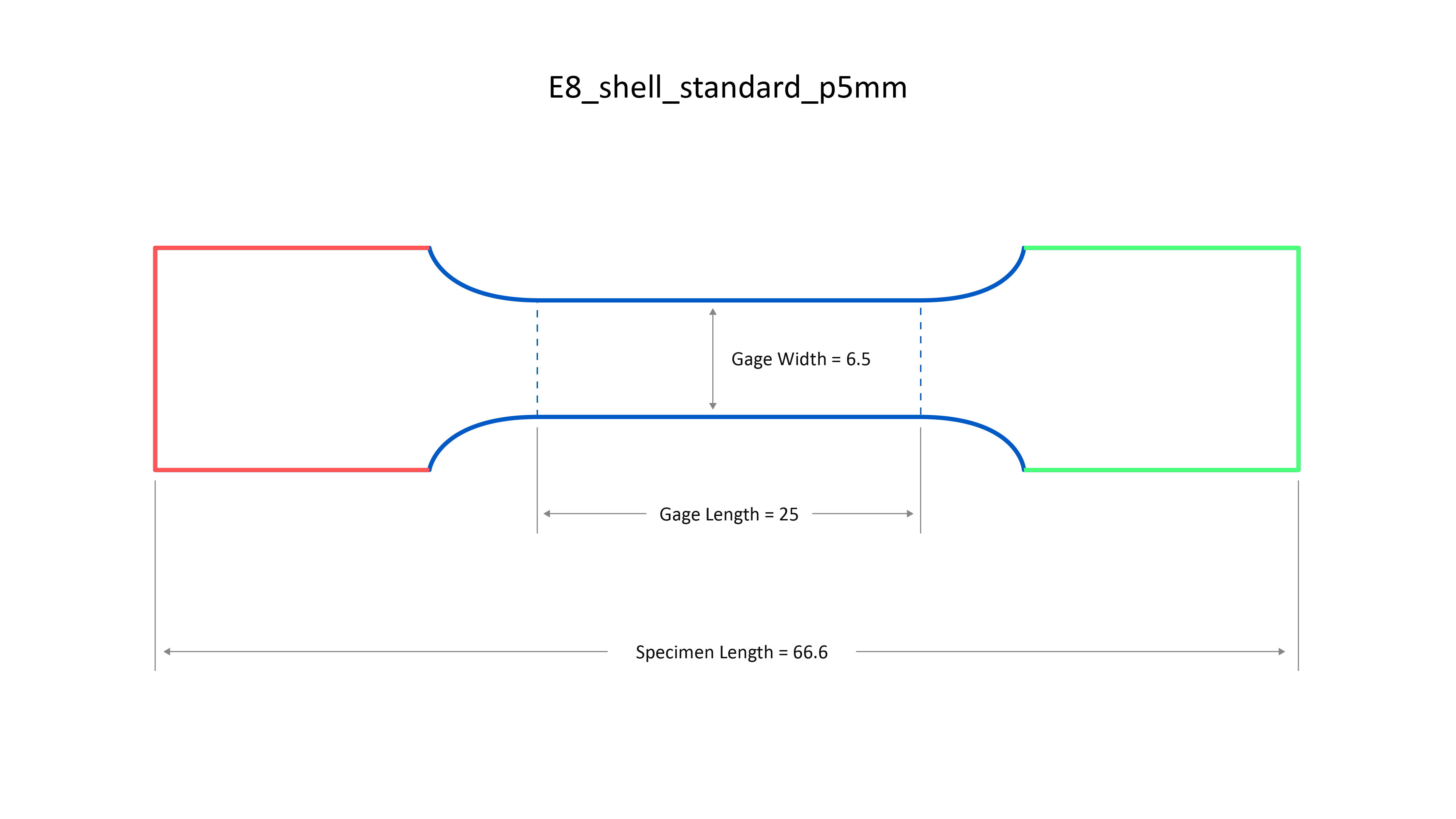

| E8_shell_standard_p5mm | 6.5 | 25 | 66.6 | 1 |  | ||

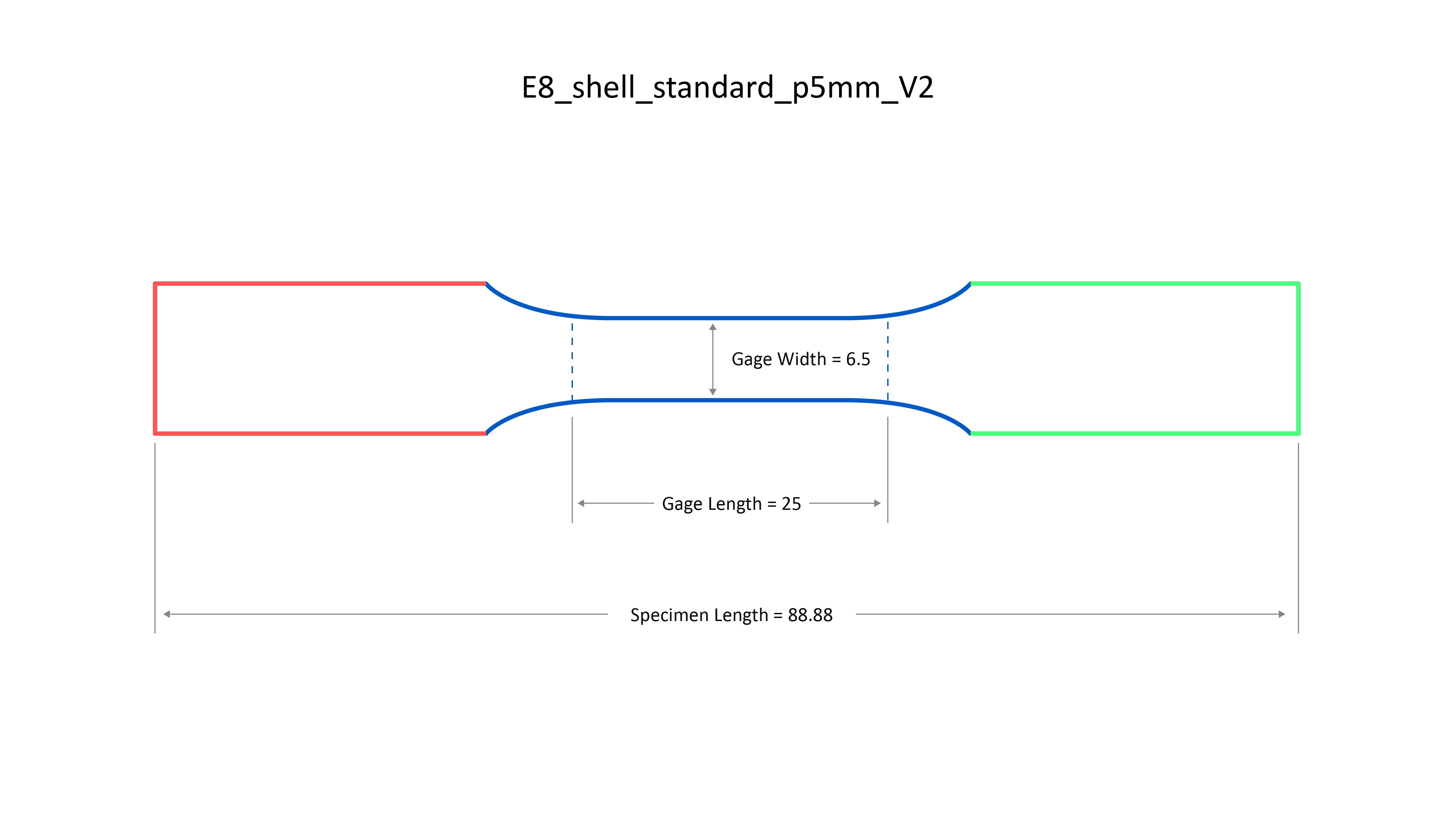

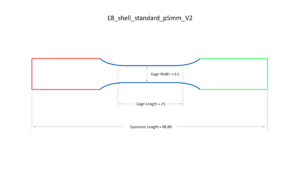

| E8_shell_standard_5mm_V2 | 6.5 | 25 | 88.88 | 1 | - |  | |
| E8_shell_l25w6p5_p5mm | 6.5 | 25 | 91.14 | 1 | - |  | |

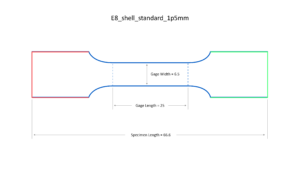

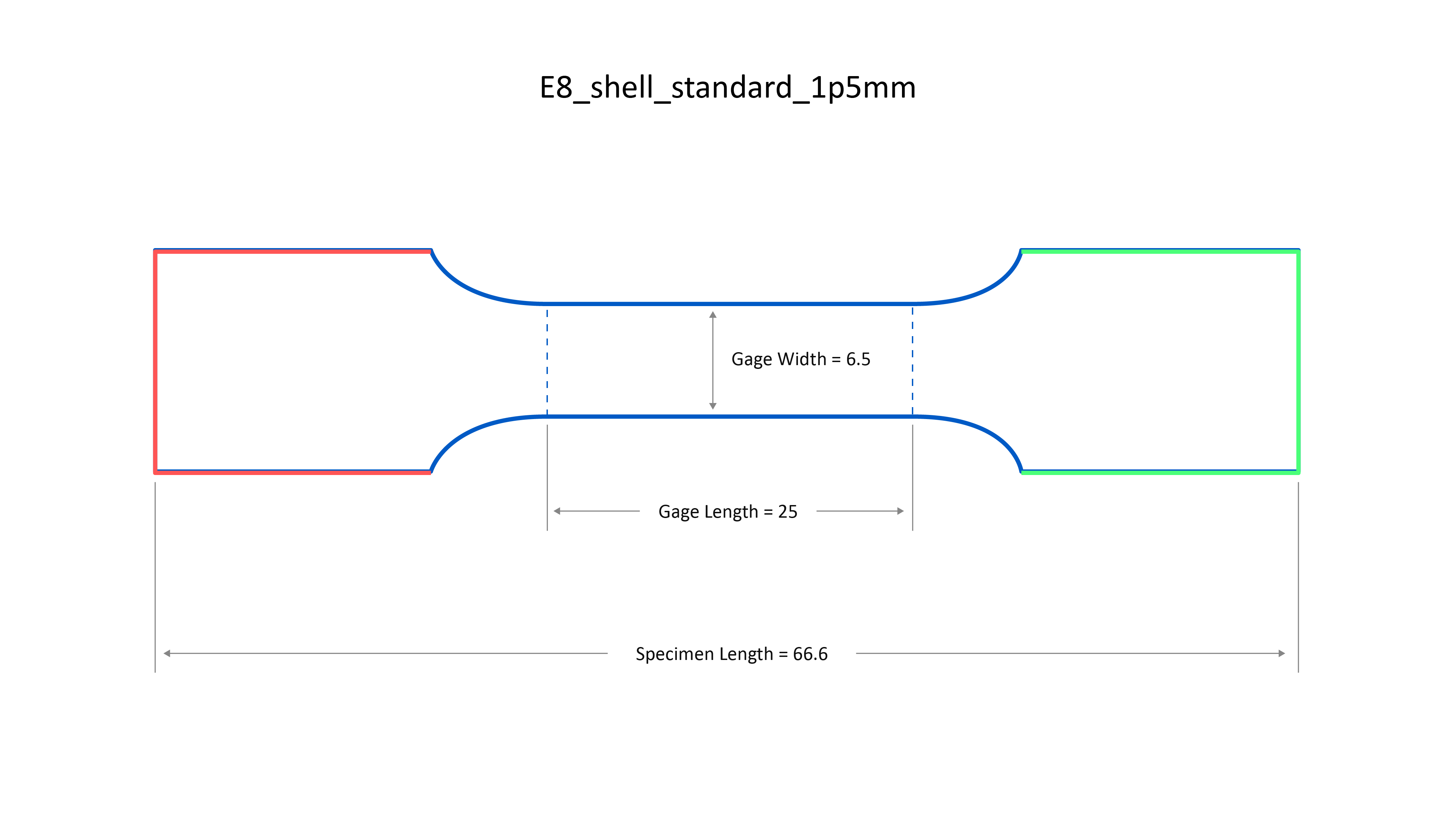

| E8_shell_standard_1p5mm | 6.5 | 25 | 66.6 | 1 | 40.97 | 193.373 |  |

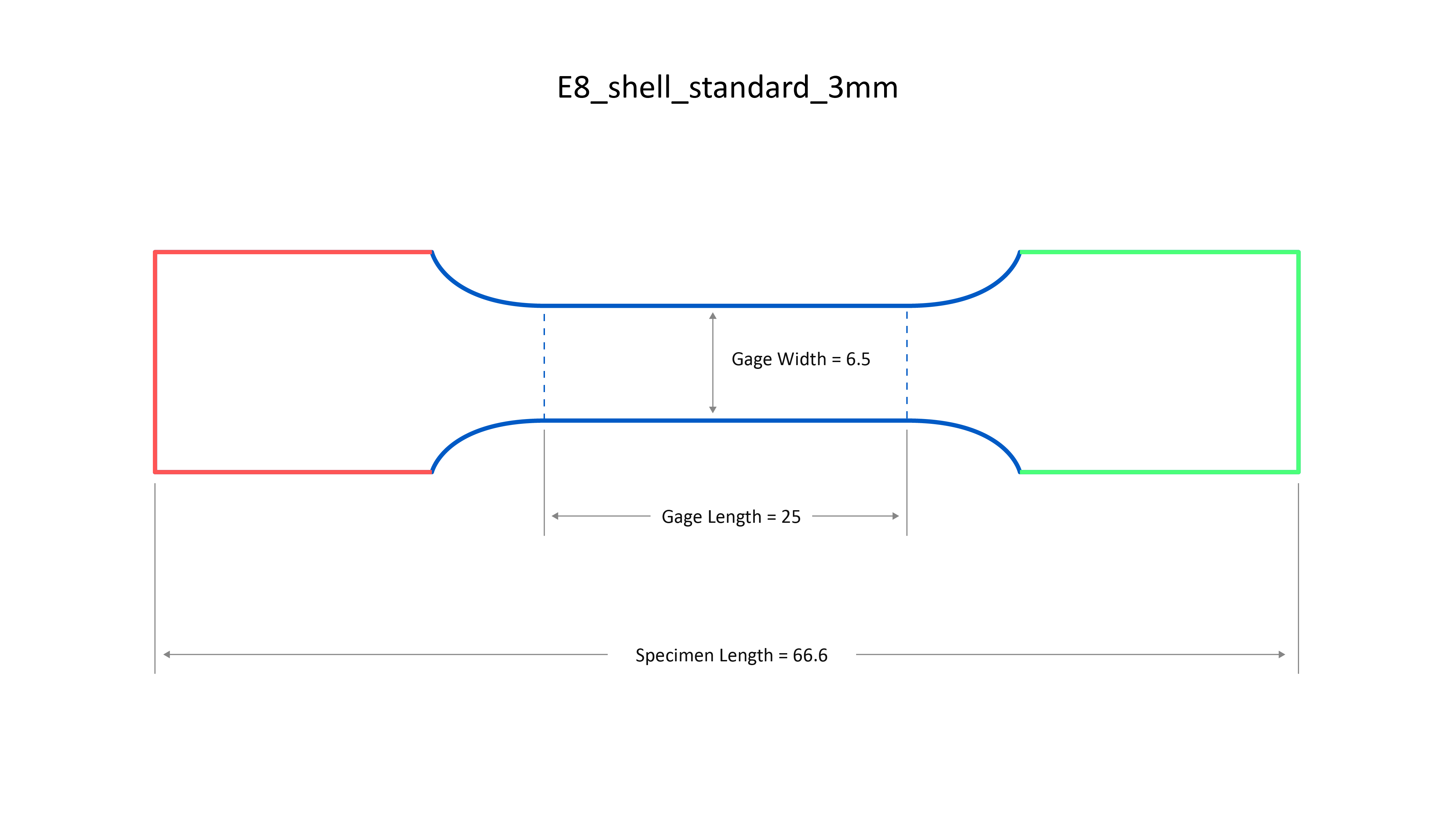

| E8_shell_standard_3mm | 6.5 | 25 | 66.6 | 1 |  | ||

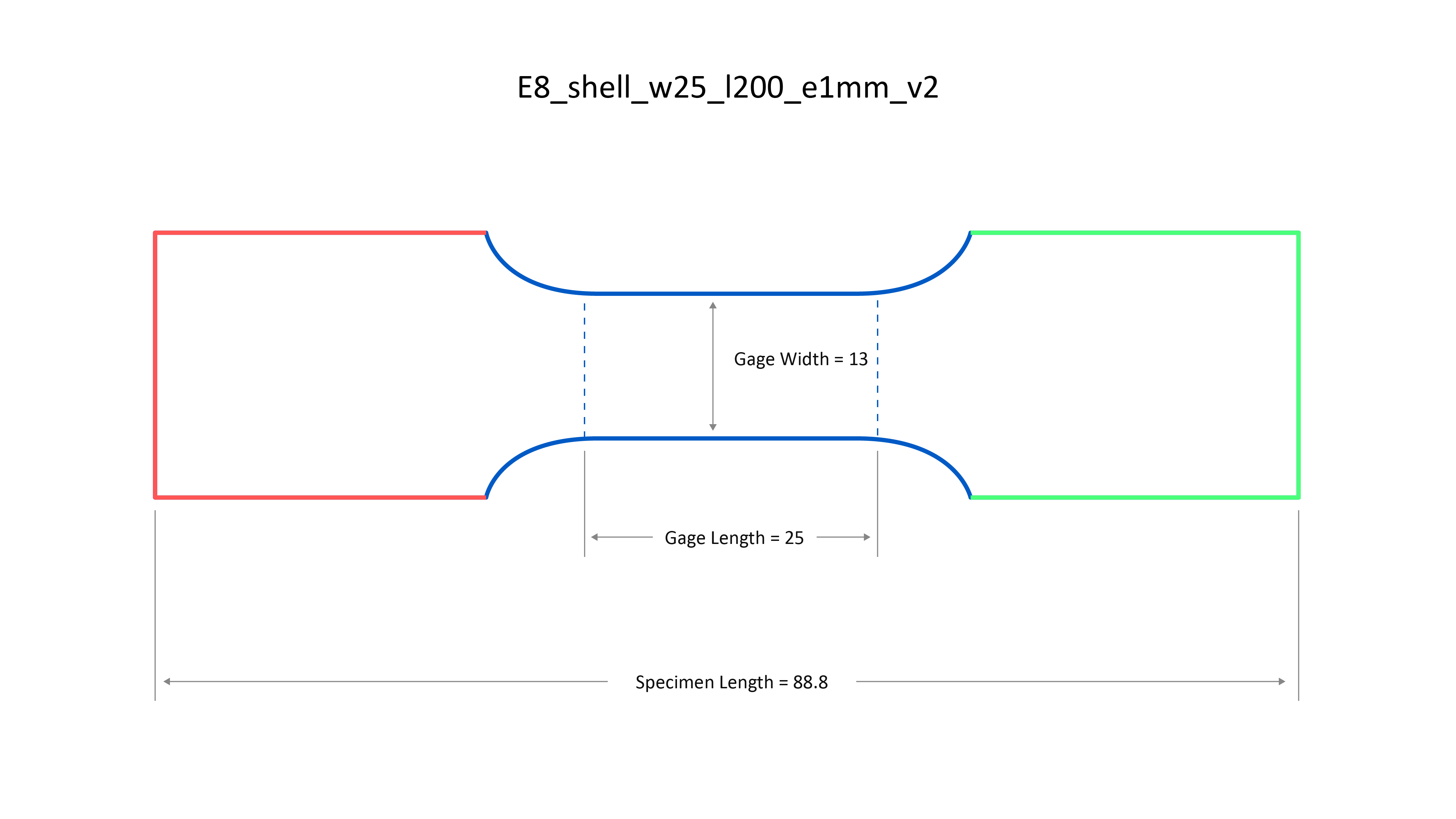

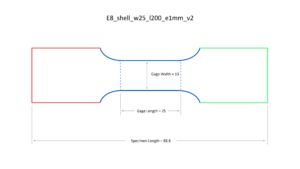

| E8_shell_w25_l200_e1mm_v2 | 13 | 25 | 88.8 |  | |||

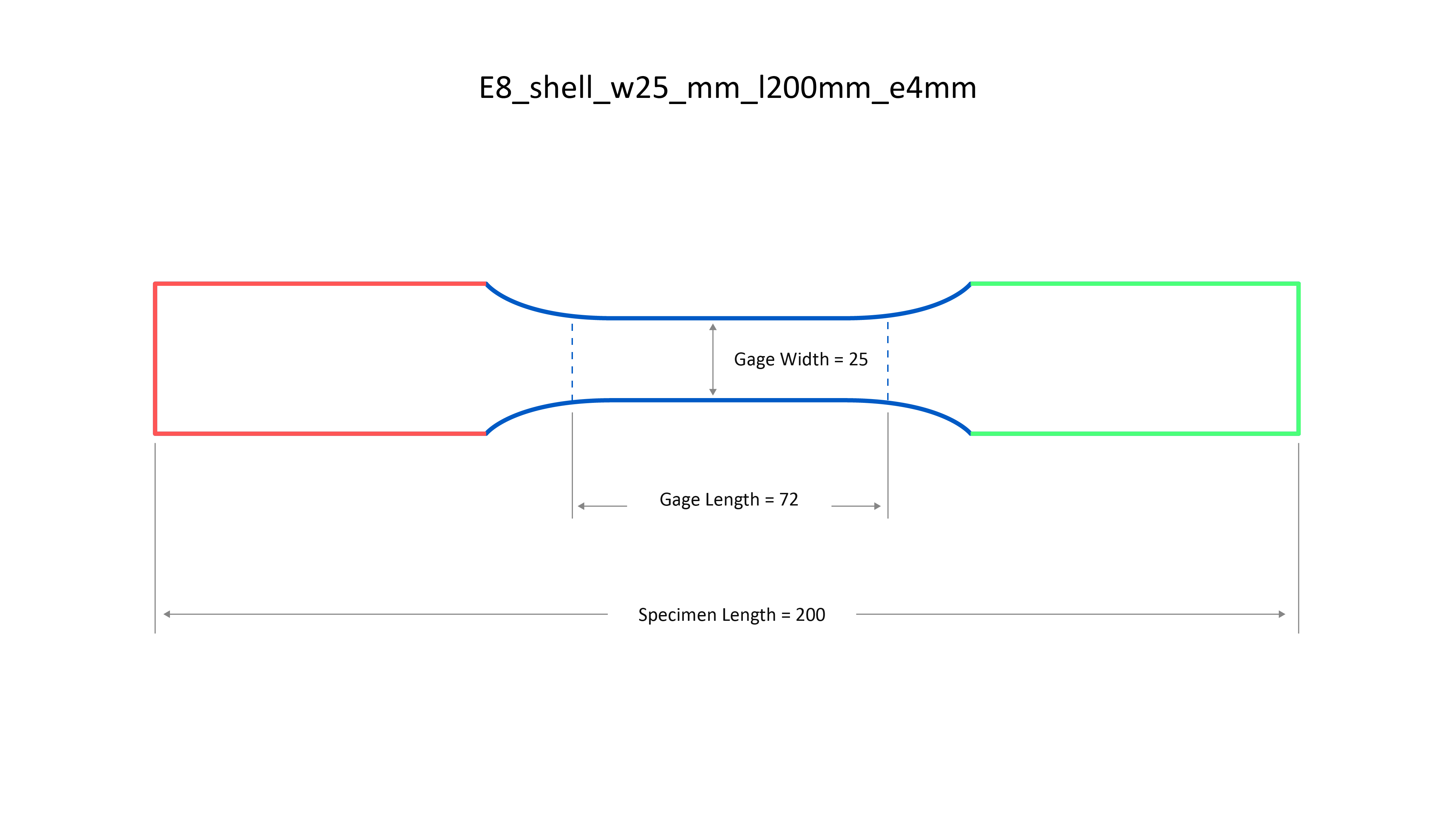

| E8_shell_w25_mm_l200mm_e4mm | 25 | 72 | 200 |  | |||

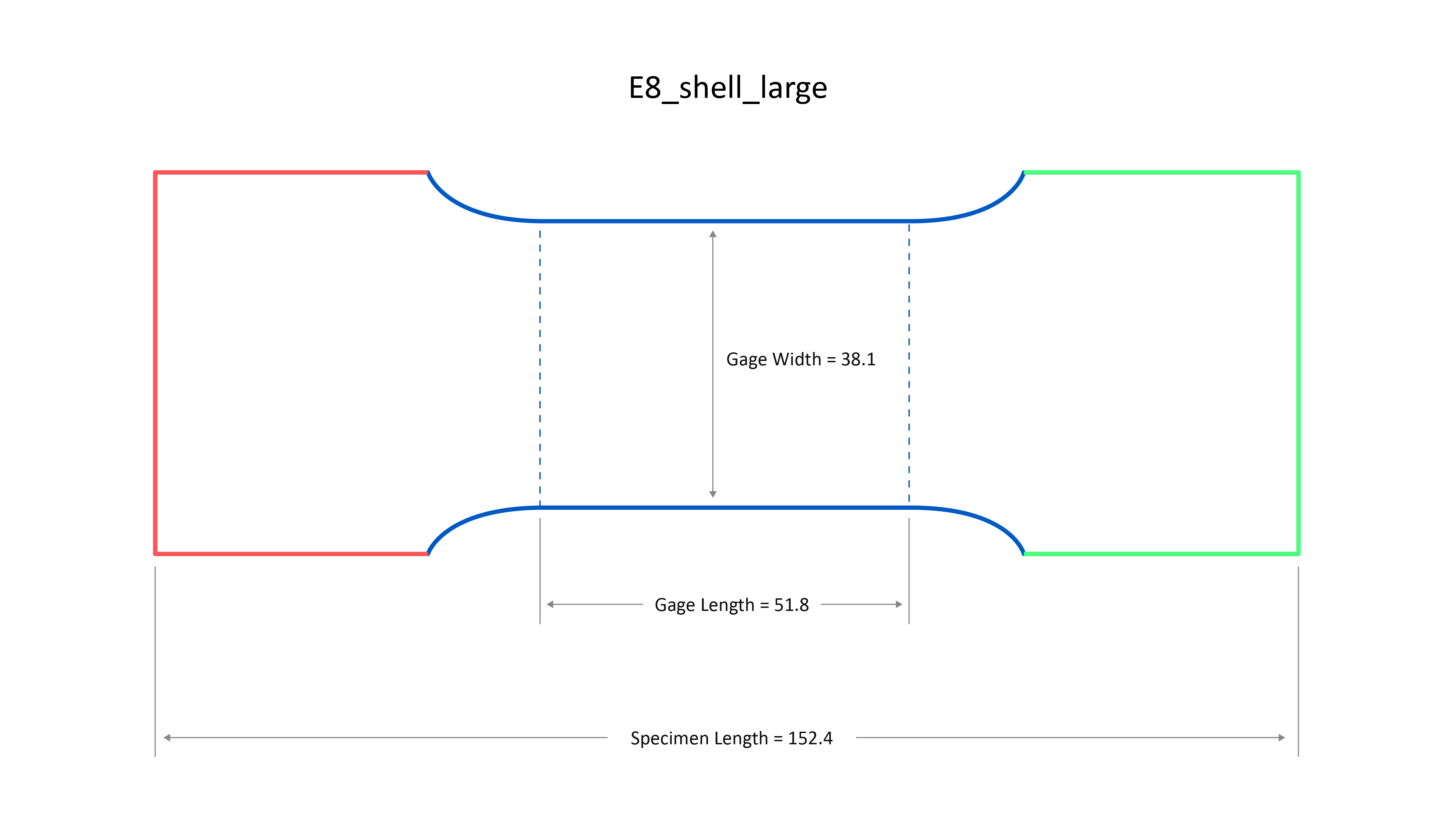

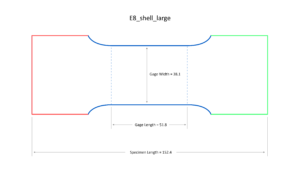

| E8_shell_large_p25mm | 38.1 | 51.8 | 152.4 |  | |||
| E8_shell_large_p5mm | 38.1 | 51.8 | 152.4 | | |||
| E8_shell_large_1mm | 38.1 | 51.8 | 152.4 | | |||
| E8_shell_large_2mm | 38.1 | 51.8 | 152.4 | | |||
| E8_shell_large_4mm | 38.1 | 51.8 | 152.4 | | |||
| E8_large_w32mm_l255mm_p6mmmesh | 32 | 73 | 255 |  | |||

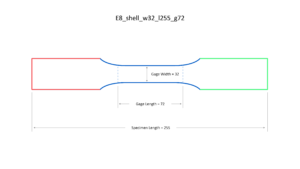

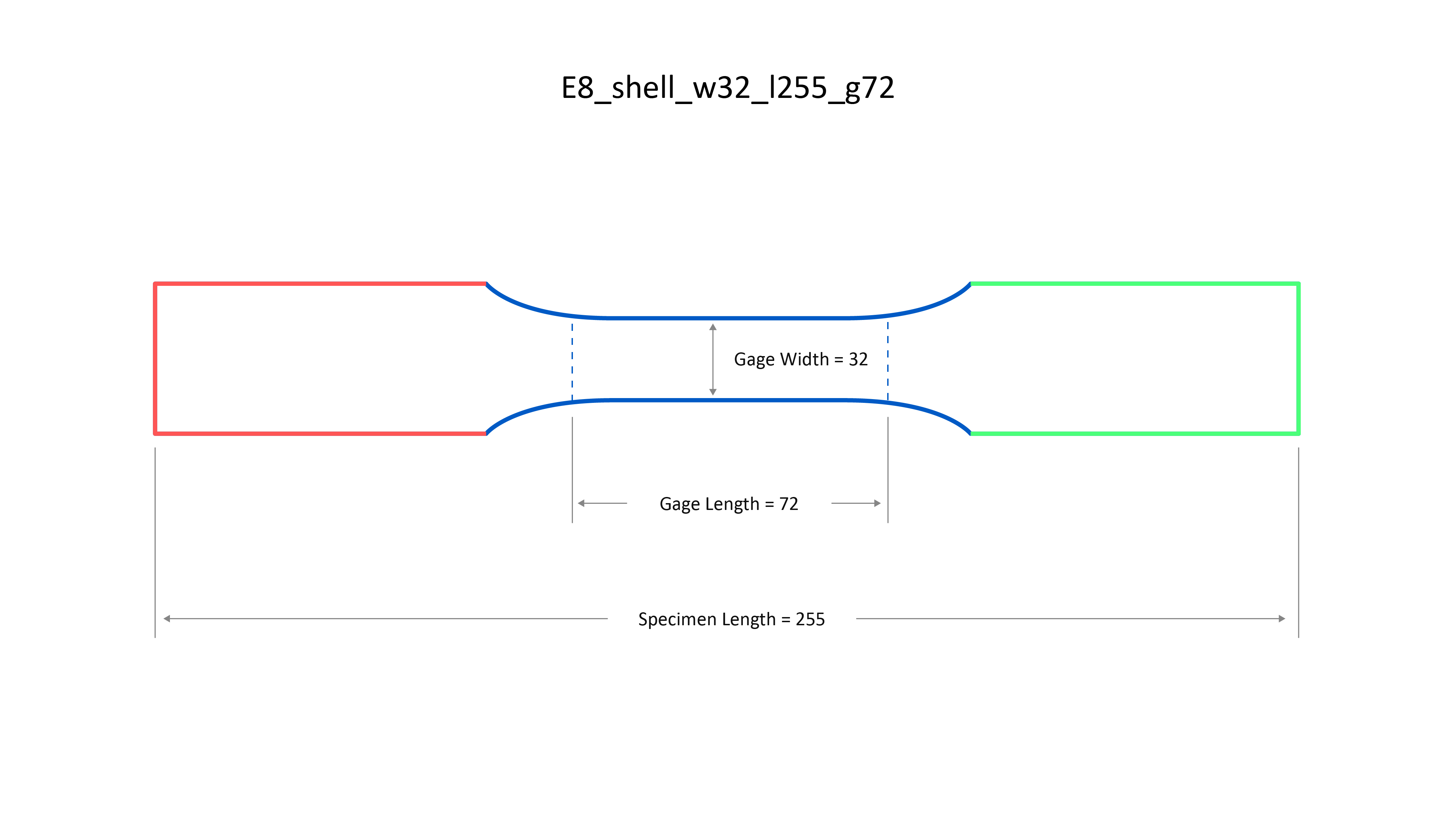

| E8_large_w32_l255_g72_1mm | 32 | 72 | 255 |  | |||
| E8_large_w32_l255_g72_2mm | 32 | 72 | 255 | | |||
| E8_large_w32_l255_g72_4mm | 32 | 72 | 255 | | |||
| E8_large_w32_l255_g72_p5mm | 32 | 72 | 255 | | |||
| E8_large_w32_l255_g72_6mm | 32 | 72 | 255 | | |||

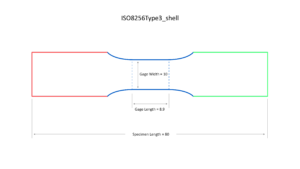

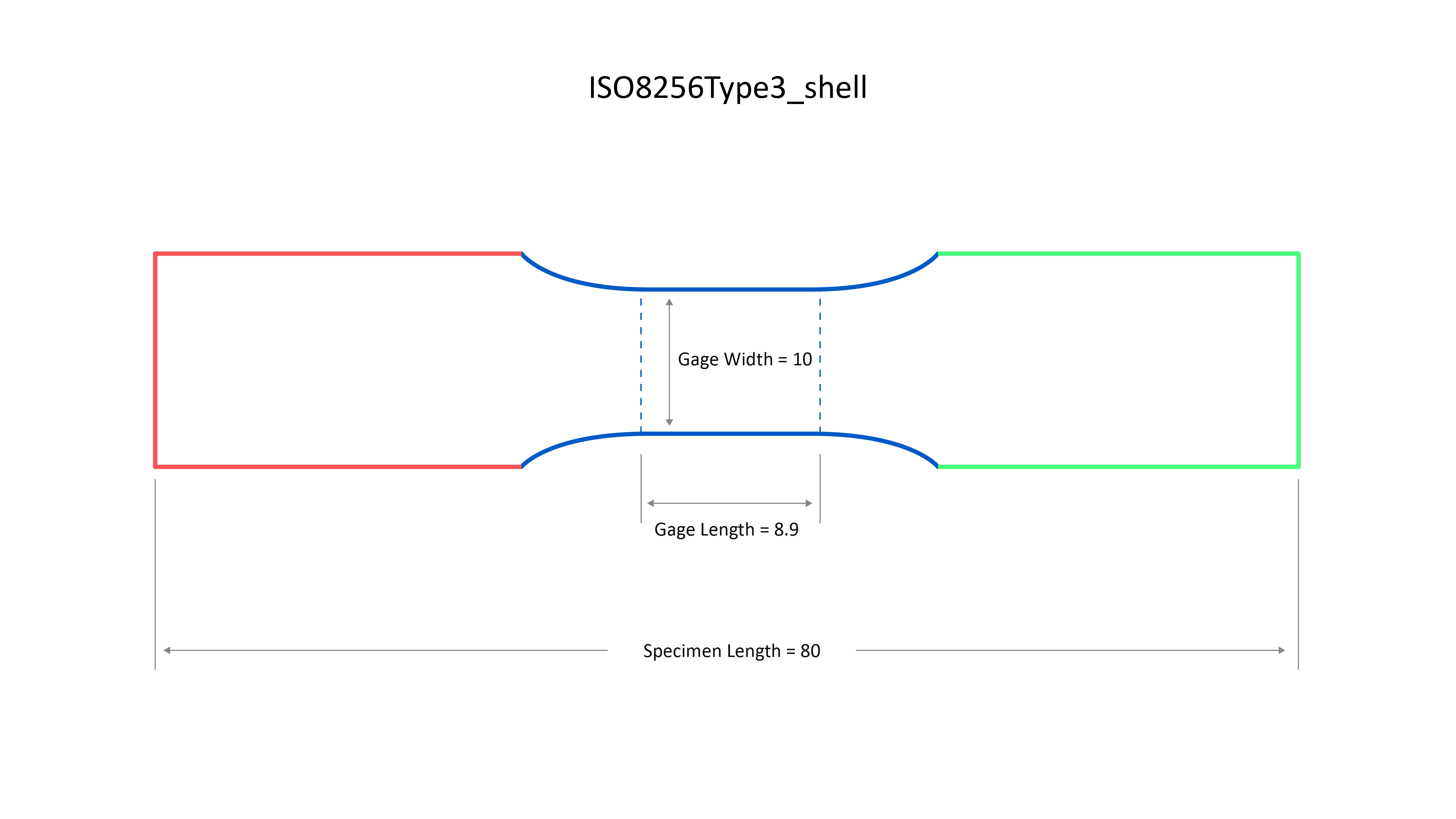

| ISO8256Type3_shell_p5mm | 10 | 8.9 | 80 |  | |||
| ISO8256Type3_shell_p125mm | 10 | 8.9 | 80 | | |||
| ISO8256Type3_shell_1mm | 10 | 8.9 | 80 | | |||
| ISO8256Type3_shell_2mm | 10 | 8.9 | 80 | | |||
| ISO8256Type3_shell_3mm | 10 | 8.9 | 80 | | |||
| ISO8256Type3_shell_6mm | 10 | 8.9 | 80 | | |||

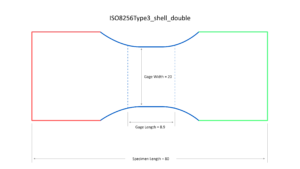

| ISO8256Type3_shell_double_1mm | 20 | 8.9 | 80 |  | |||
| ISO8256Type3_shell_double_2mm | 20 | 8.9 | 80 | | |||
| ISO8256Type3_shell_double_4mm | 20 | 8.9 | 80 | | |||
| ISO8256Type3_shell_double_p5mm | 20 | 8.9 | 80 | | |||
| ISO8256Type3_shell_double_6mm | 20 | 8.9 | 80 | |
Shear Material Specimen Types
| Name | Shear Width | Shear Length | Specimen Width | Specimen Length | Image | ||
|---|---|---|---|---|---|---|---|
| shear0degree_p5mm | 5.03 | 1.62 | 25.4 | 92.57 |  | ||

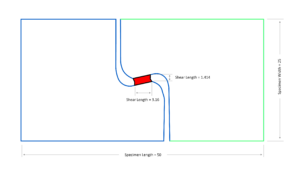

| shear0degree_waterloo_p1mm | 3.16 | 1.414 | 25 | 50 | | ||

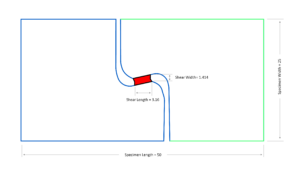

| shear0degree_waterloo_1mm | 3.16 | 1.414 | 25 | 50 |  | ||

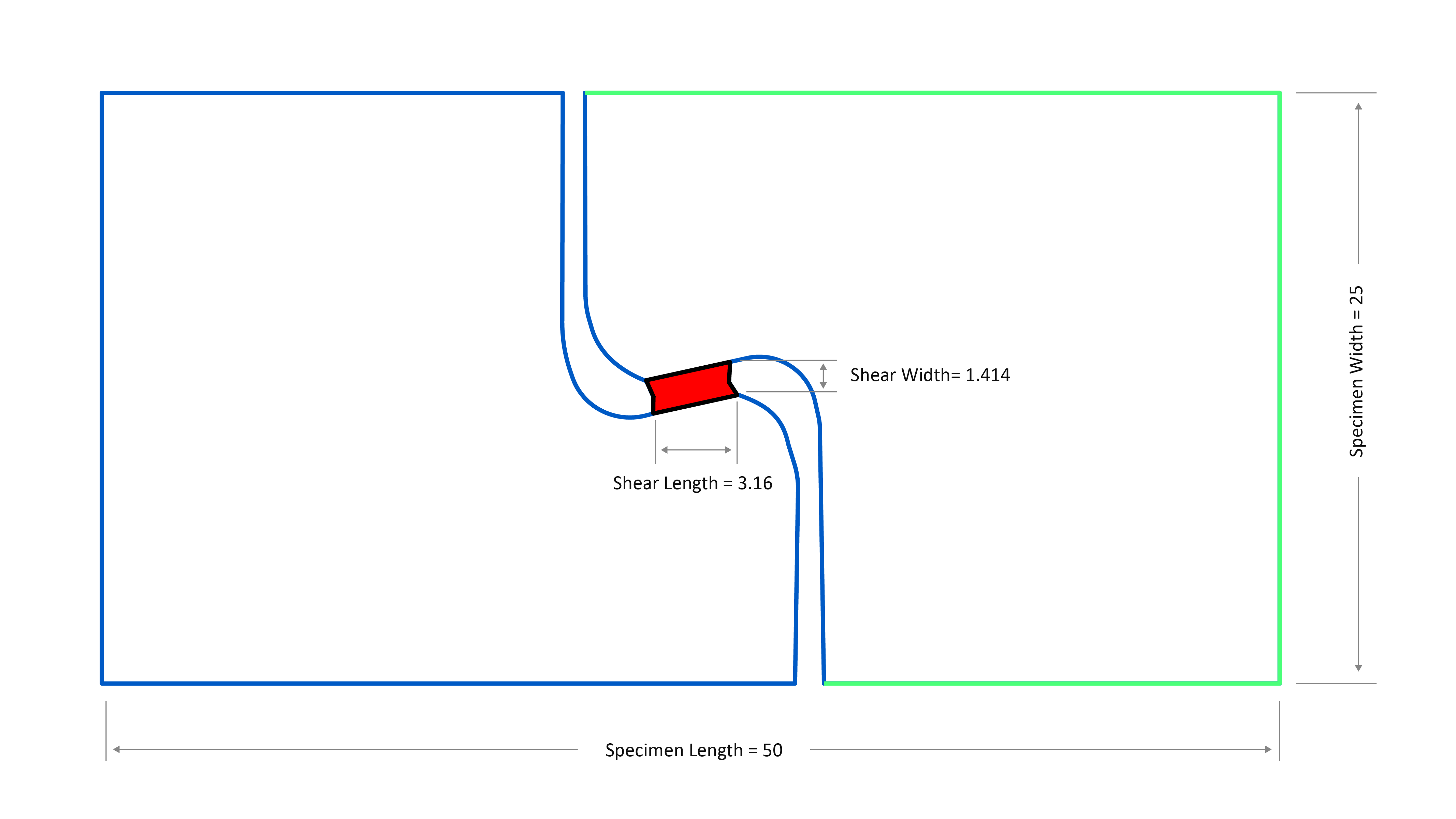

| shear0degree_waterloo_p1mm_v2_scale_up | 3.16 | 1.414 | 25 | 50 |  | ||

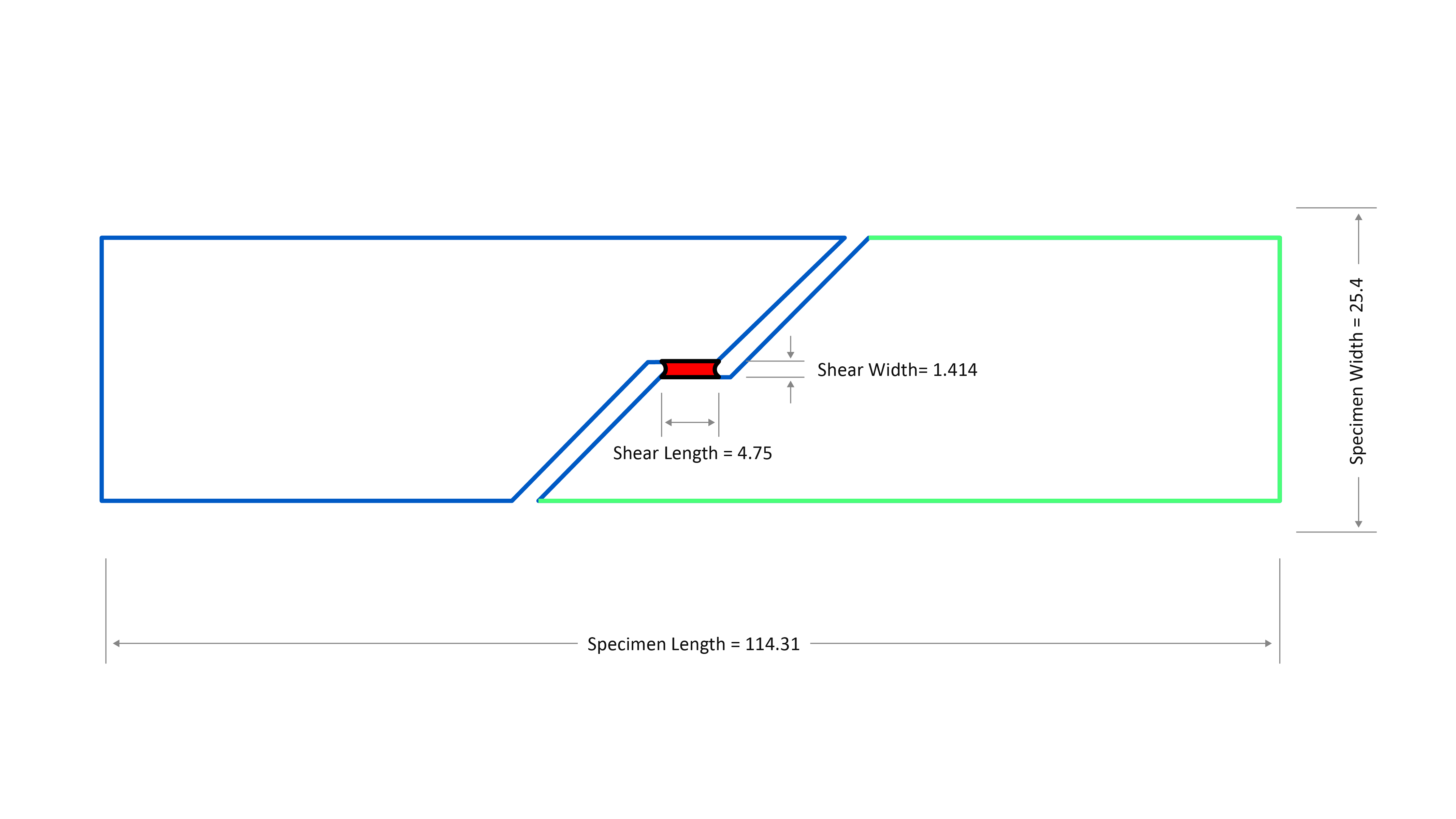

| shear0degree_p5mm_v2 | 4.75 | 1.414 | 25.4 | 114.31 |  | ||

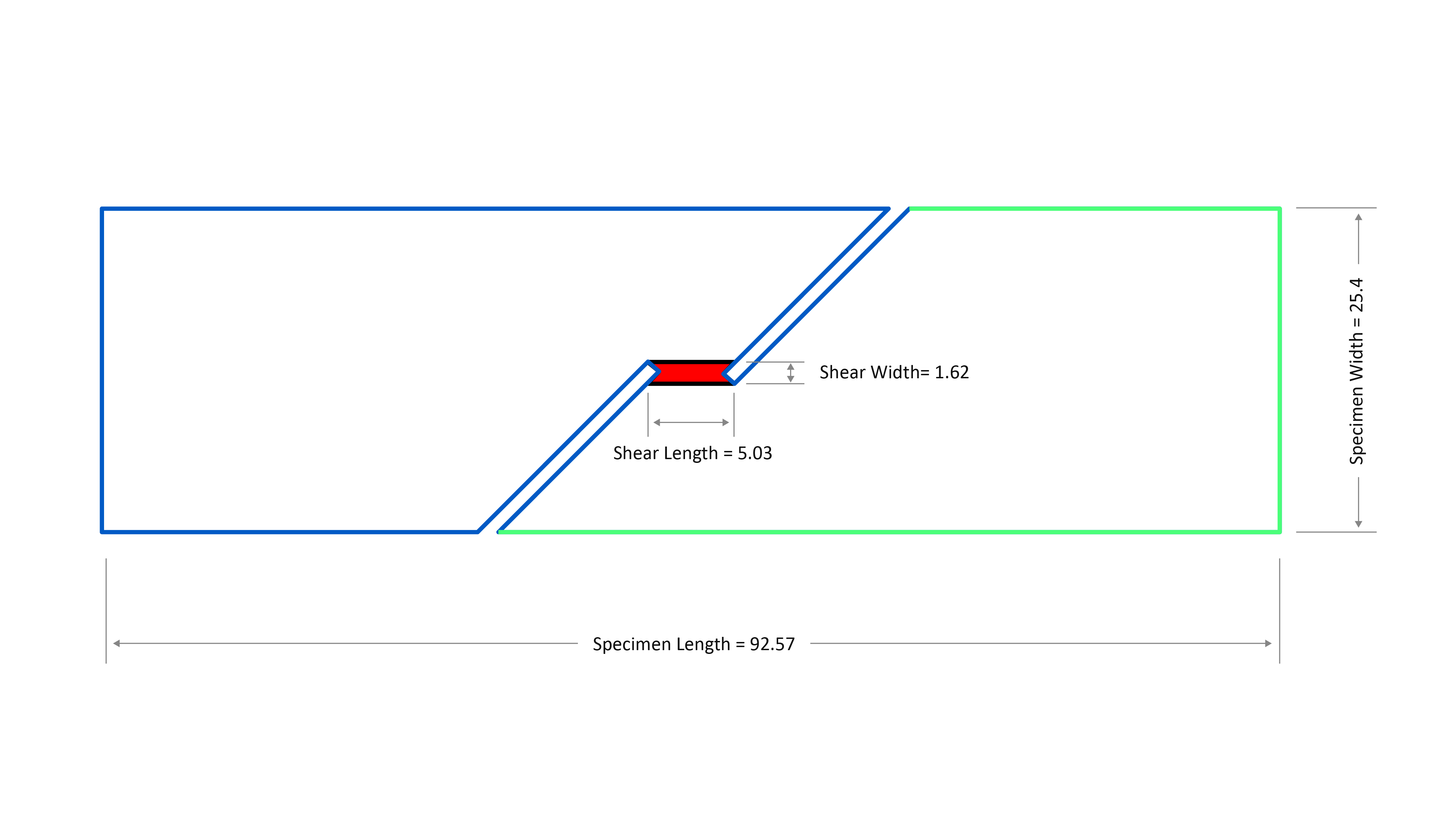

| shear0degree_1mm | 5.03 | 1.62 | 25.4 | 92.57 |  | ||
| shear0degree_2mm | 5.03 | 1.62 | 25.4 | 92.57 |  | ||
| shear0degree_4mm | 5.03 | 1.62 | 25.4 | 92.57 |  |
Notch Material Specimen Types
| Name | Notch Width | Grip Distance | Notch .25d | Specimen Width | Specimen Length | Image | ||
|---|---|---|---|---|---|---|---|---|
| Notch_3dtetra_R17p47_a2p38_3mm | 22.168 | 4.7 | R17.47 | 12.7 | 88.902 |  | ||

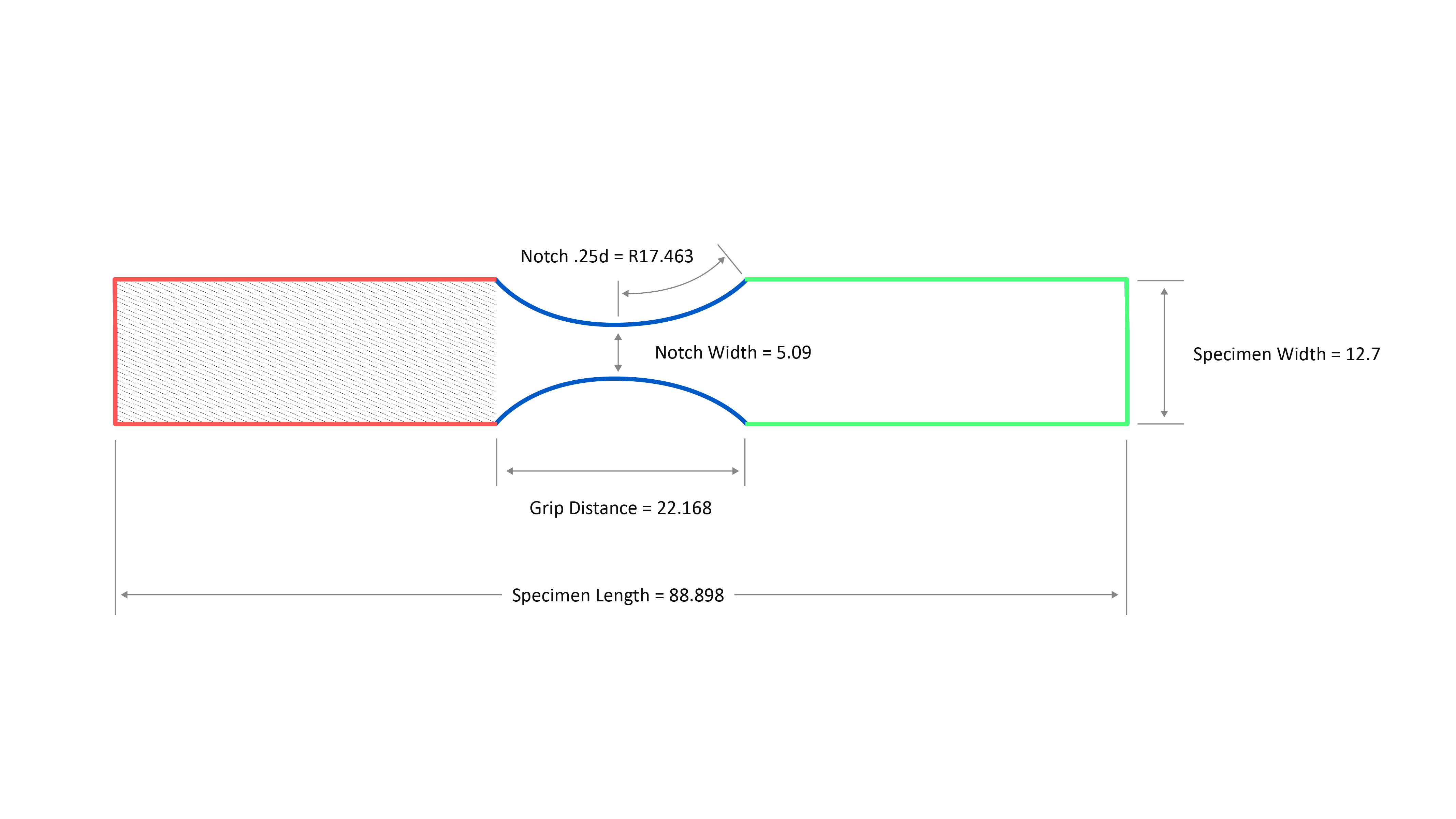

| Notch_3dtetra_R17p47_a2p54_5mm | 22.166 | 5.09 | R17.463 | 12.7 | 88.898 |  | ||

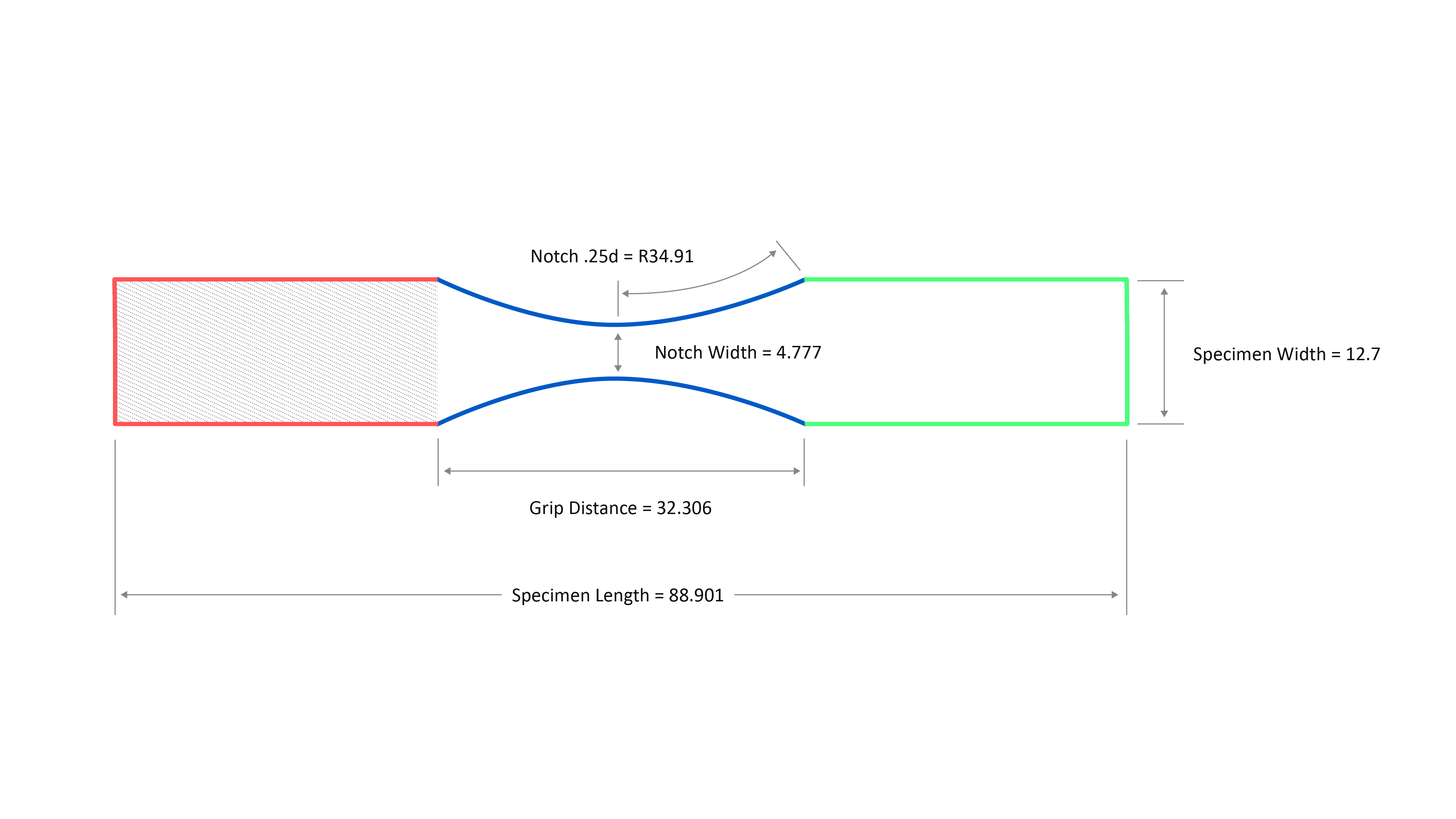

| Notch_3dtetra_R35_a2p5_3mm | 32.306 | 4.777 | R34.91 | 12.7 | 88.901 |  | ||

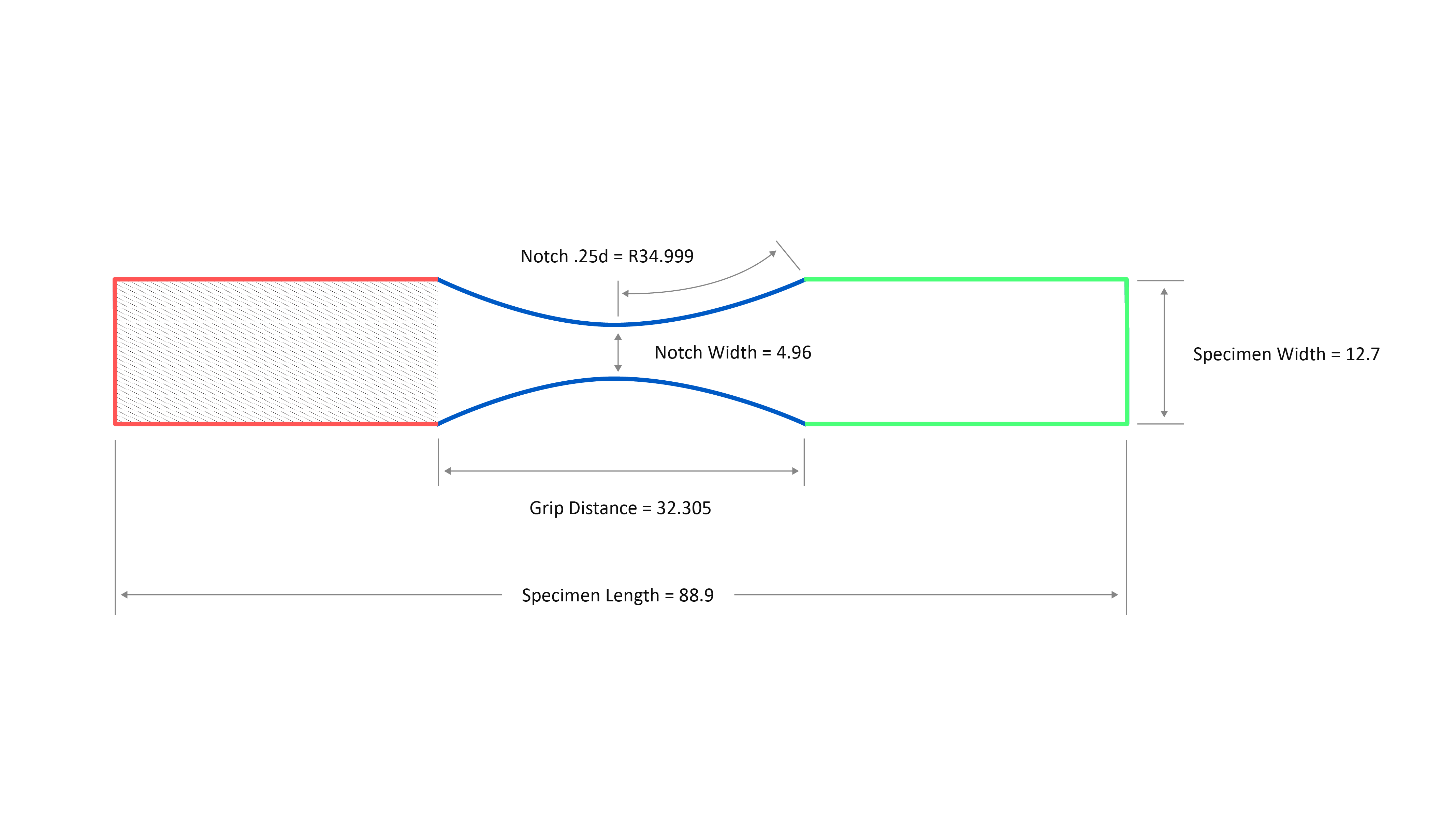

| Notch_3dtetra_R35_a2p5_5mm | 32.305 | 4.96 | R34.999 | 12.7 | 88.9 |  | ||
| Notch_3dtetra_R6p74_a2p38_3mm | 12.294 | 4.77 | R6.74 | 12.7 | 88.898 | | ||

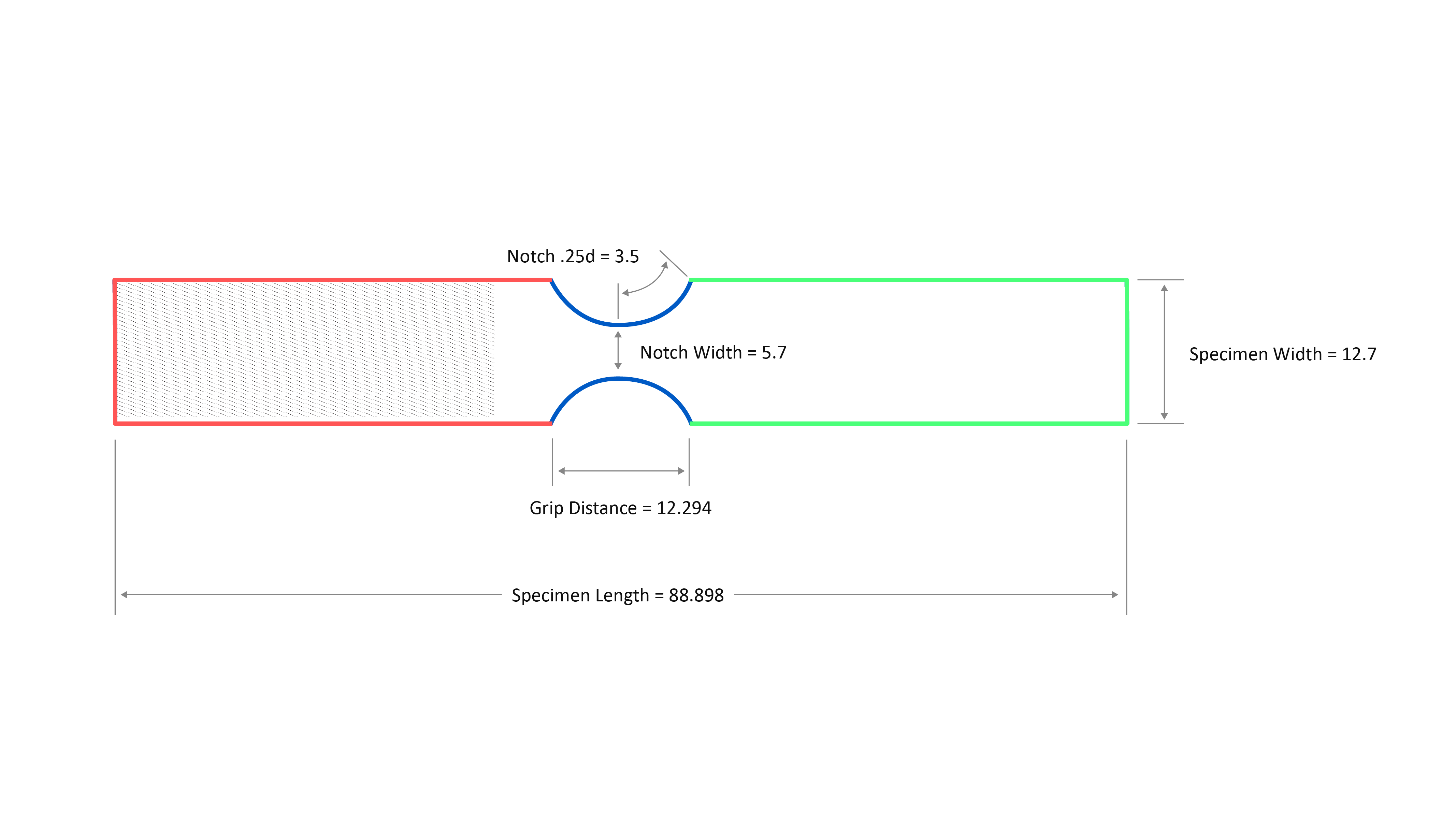

| Notch_3dtetra_R6p74_a2p38_5mm | 12.294 | 5.7 | 3.5 | 12.7 | 88.898 |  | ||

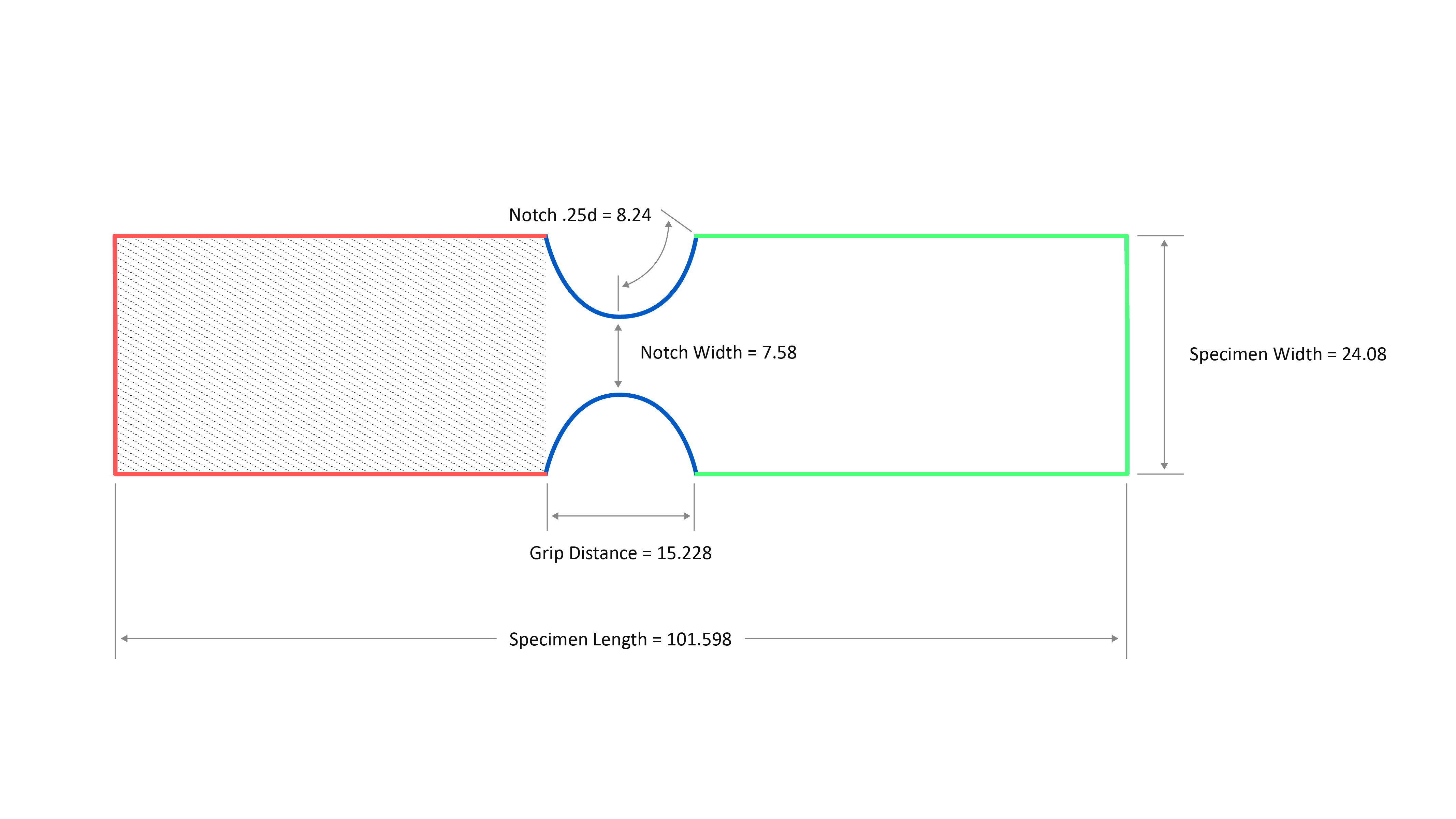

| notch_shell_r6p74in_a2p87_6mm | 15.228 | 7.58 | 8.24 | 24.08 | 101.598 |  | ||
| notch_shell_r6p74in_a2p87_4mm | 3.169 | 6.41 | 8.83 | 24.08 | 101.595 |  | ||

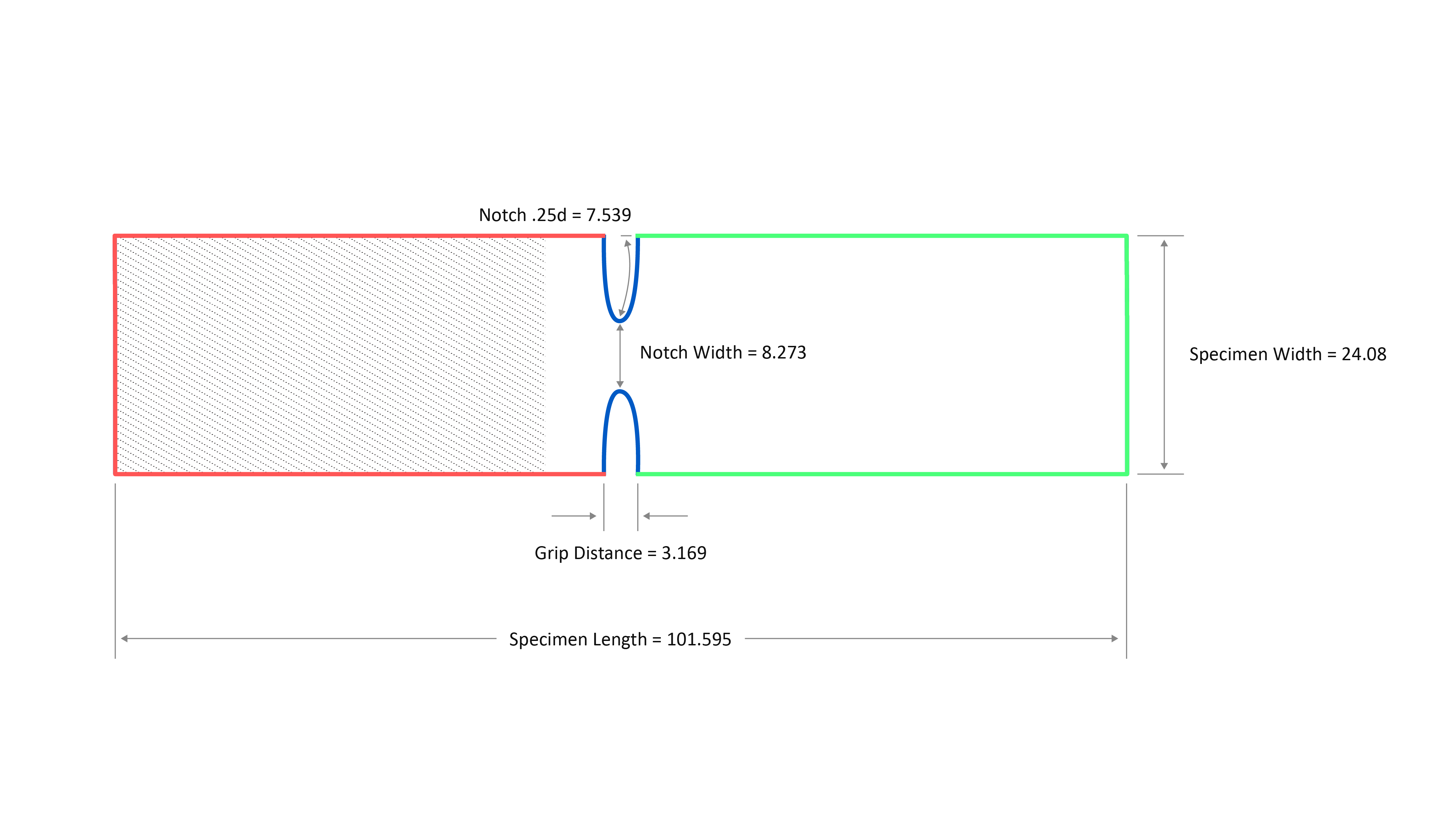

| notch_shell_r6p74in_a2p87_2mm | 3.169 | 8.273 | 7.539 | 24.08 | 101.595 |  | ||

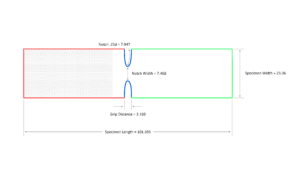

| notch_shell_r6p74in_a2p87_1mm | 3.169 | 7.468 | 7.947 | 23.36 | 101.595 |  | ||

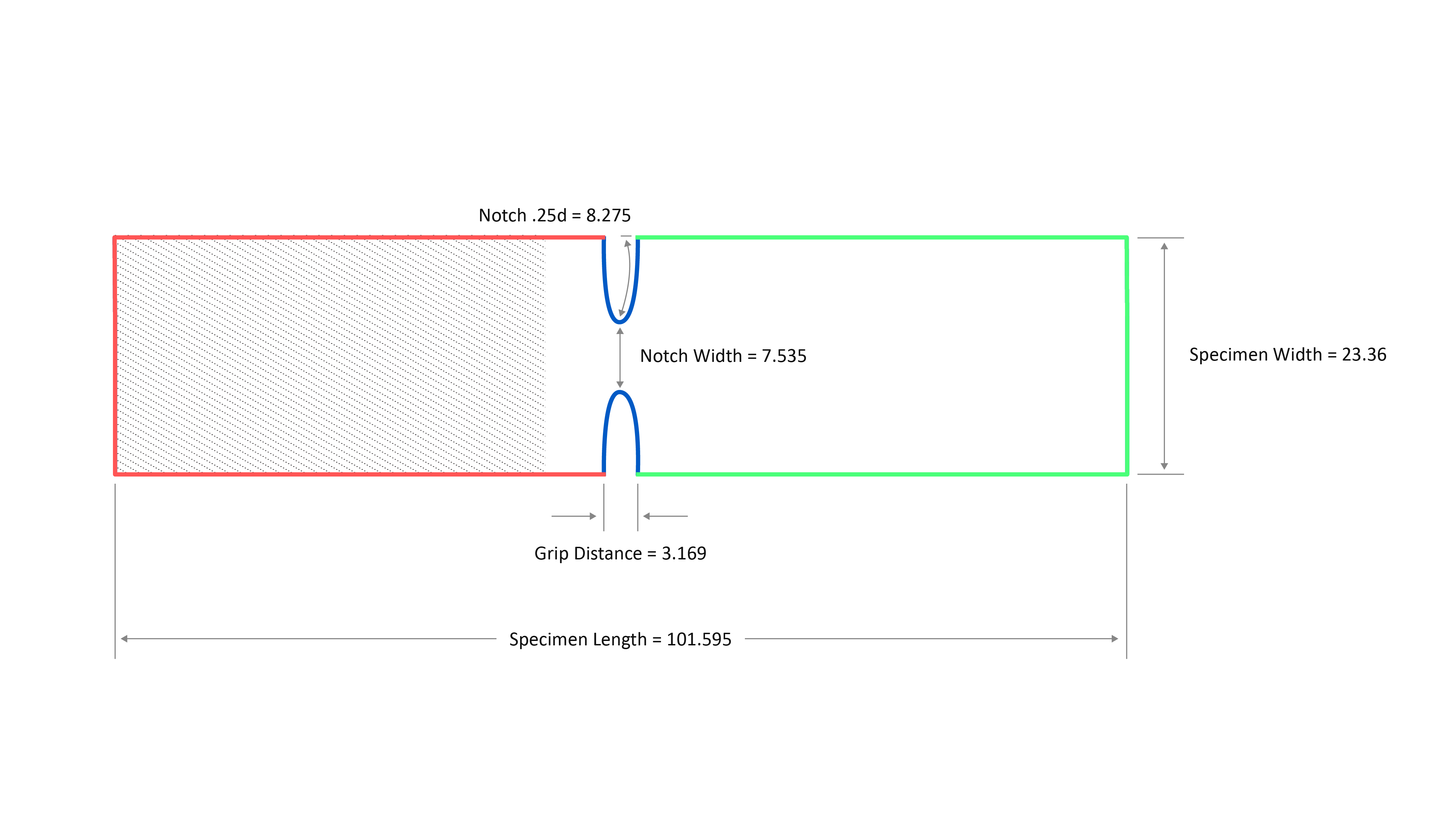

| notch_shell_r6p74in_a2p87_p5mm | 3.169 | 7.535 | 8.275 | 24.08 | 101.595 |  | ||
| notch_shell_uniaxial_3_10_in_6mm | 15.226 | 7.586 | 8.24 | 24.08 | 101.598 |  | ||

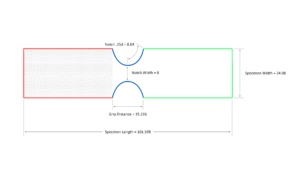

| notch_shell_uniaxial_3_10_in_4mm | 15.226 | 8 | 8.04 | 24.08 | 101.598 |  | ||

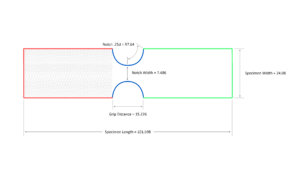

| notch_shell_uniaxial_3_10_in_2mm | 15.226 | 7.486 | R7.64 | 24.08 | 101.598 |  | ||

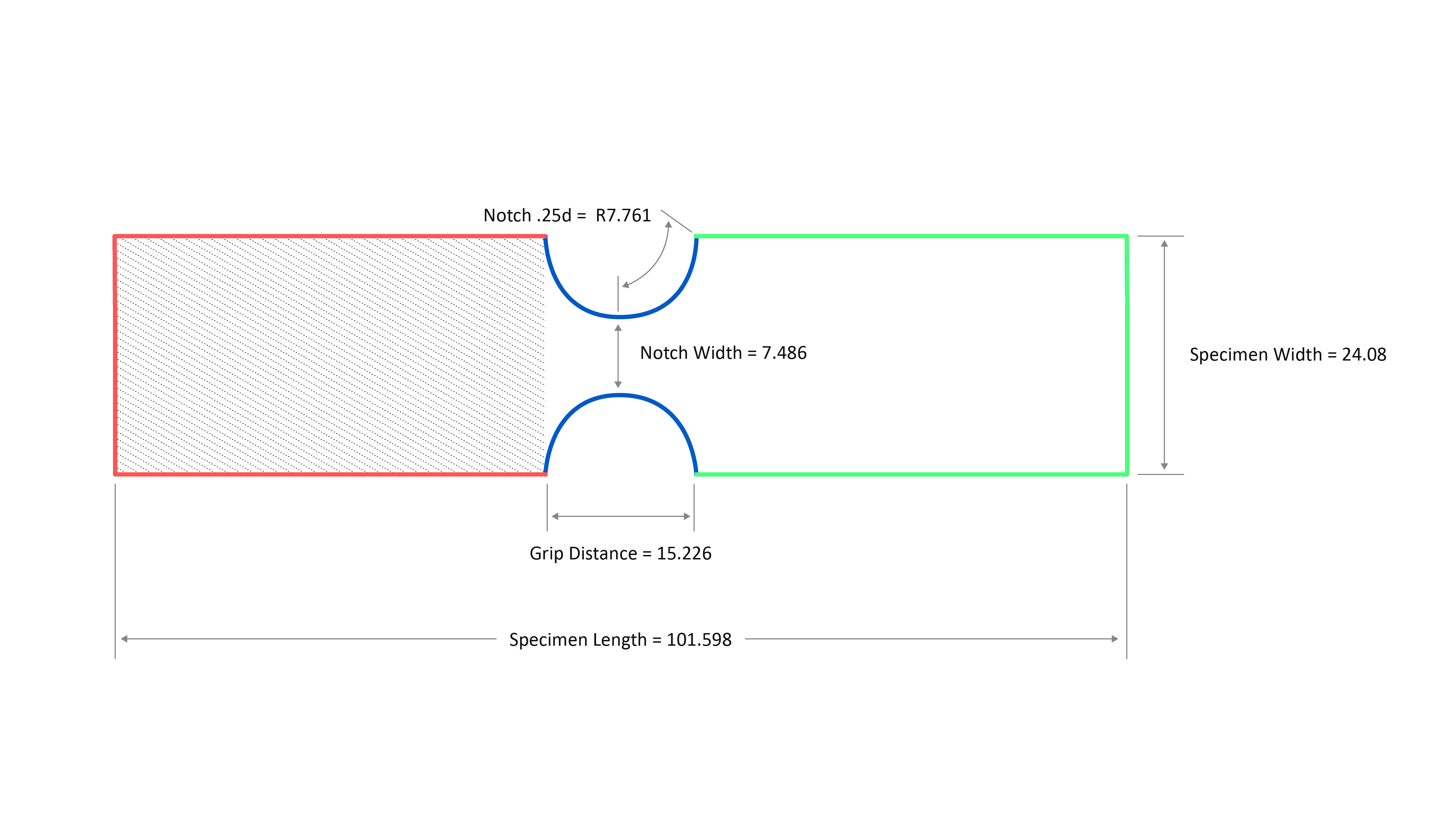

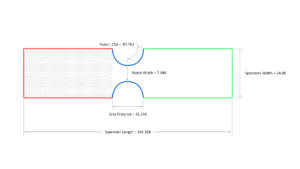

| notch_shell_uniaxial_3_10_in_1mm | 15.226 | 7.486 | R7.761 | 24.08 | 101.598 |  | ||
| notch_shell_uniaxial_3_10_in_p5mm | 15.226 | 7.486 | R7.641 | 24.08 | 101.598 | | ||

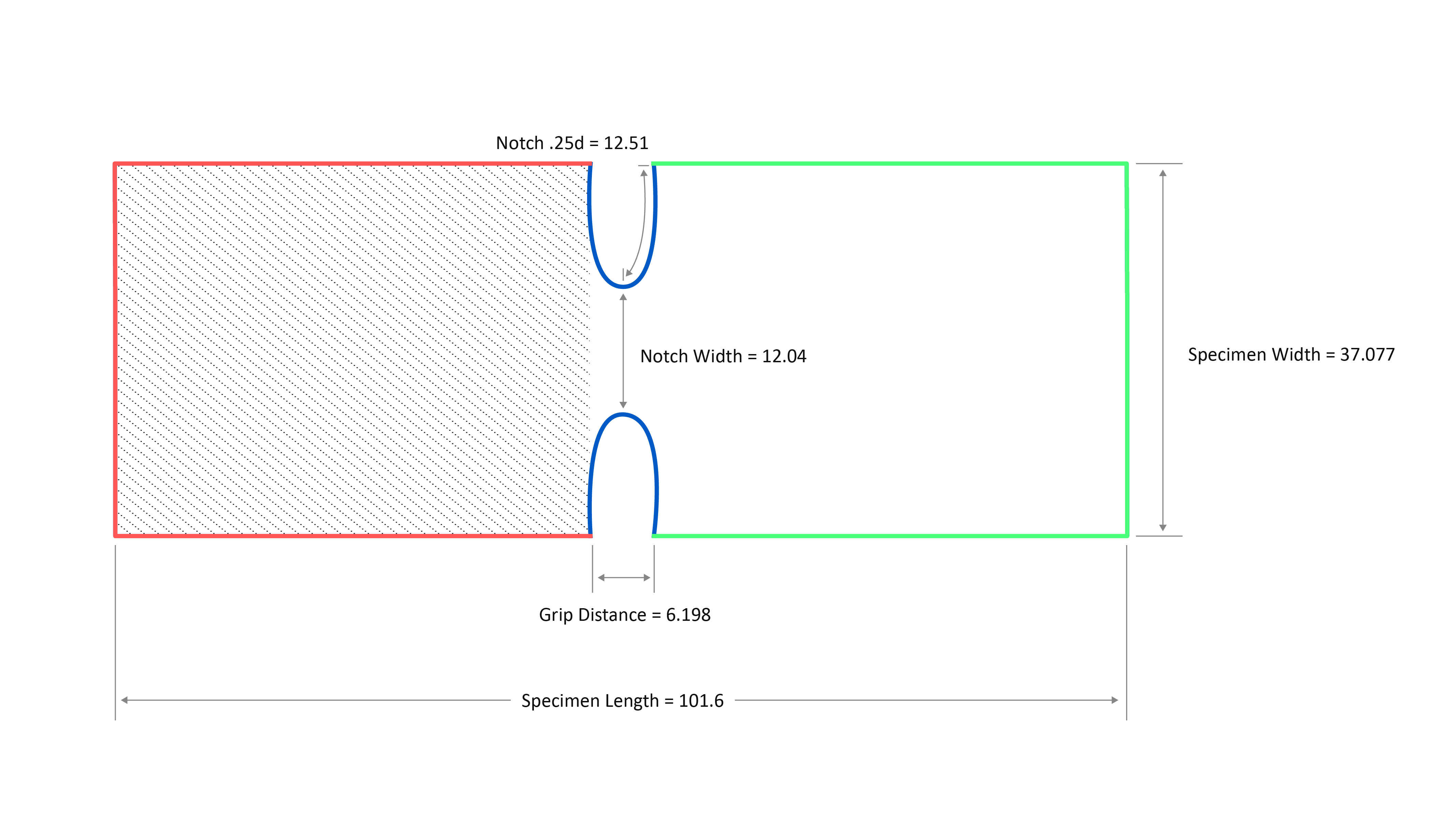

| notch_shell_uniaxial_3_10_in_p5mm_v2 | 6.198 | 12.04 | 12.51 | 37.077 | 101.6 |  |
Punch Material Specimen Types
| Name | Punch Diameter | Die Diameter | Specimen Diameter | Image | ||
|---|---|---|---|---|---|---|

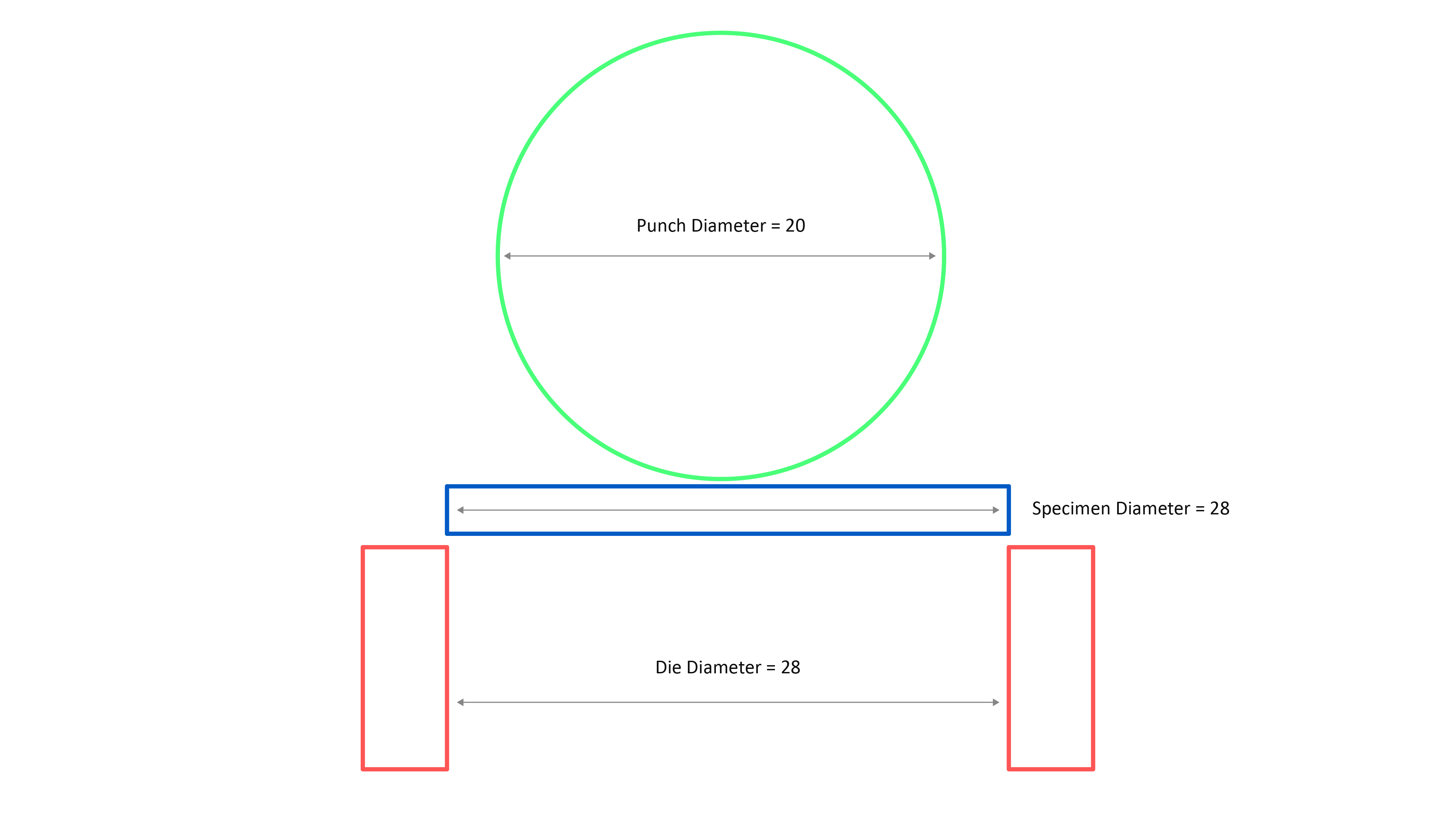

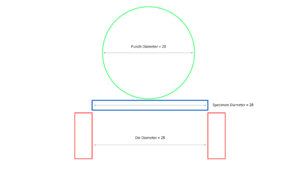

| punch_20mmdia_specimen28mmdia | 20 | 27 | 25.4 |  | ||

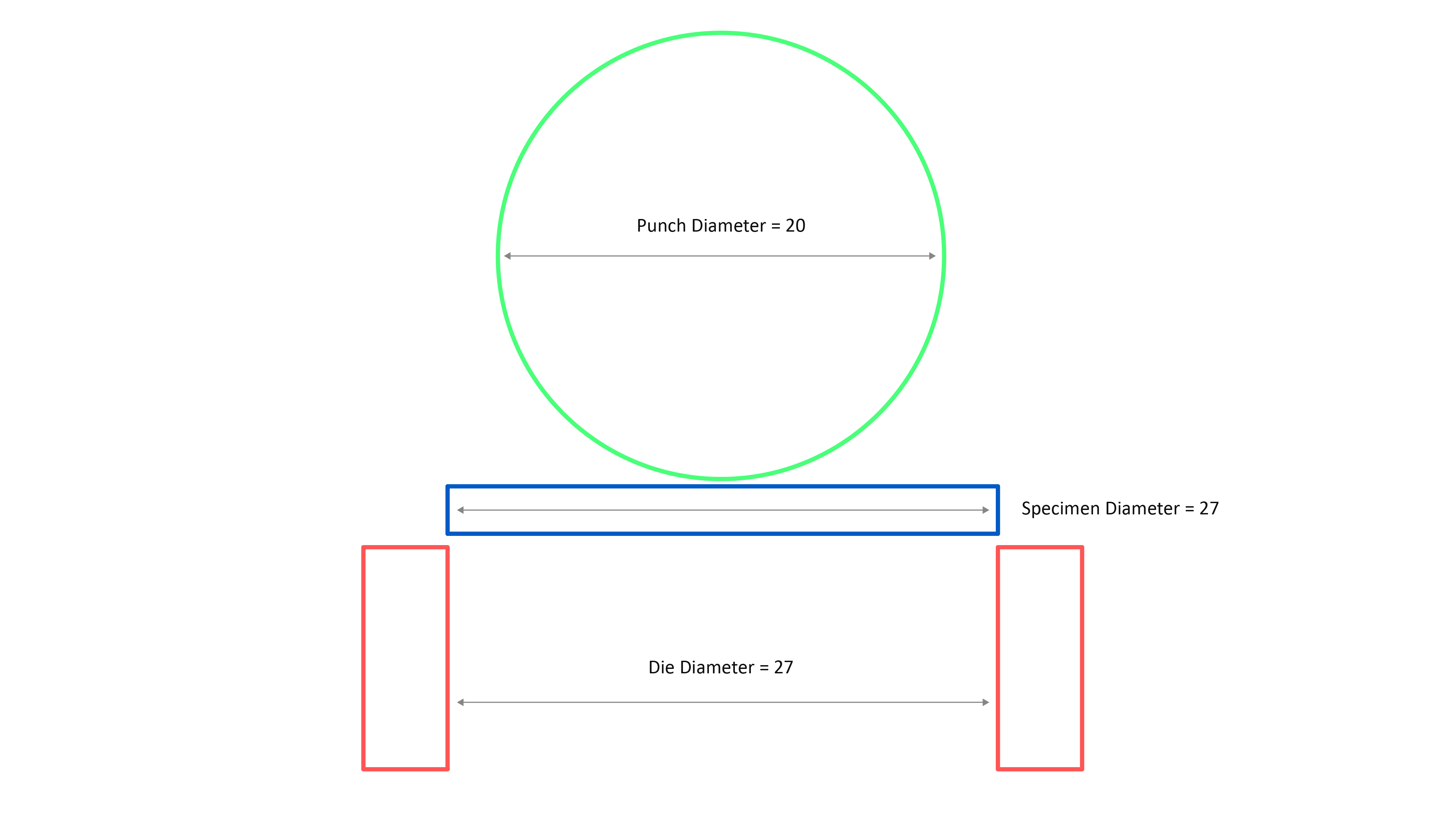

| punch_20mmdia_specimen27mmdia | 20 | 20 | 18.8 |  | ||

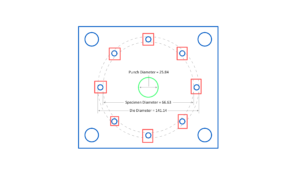

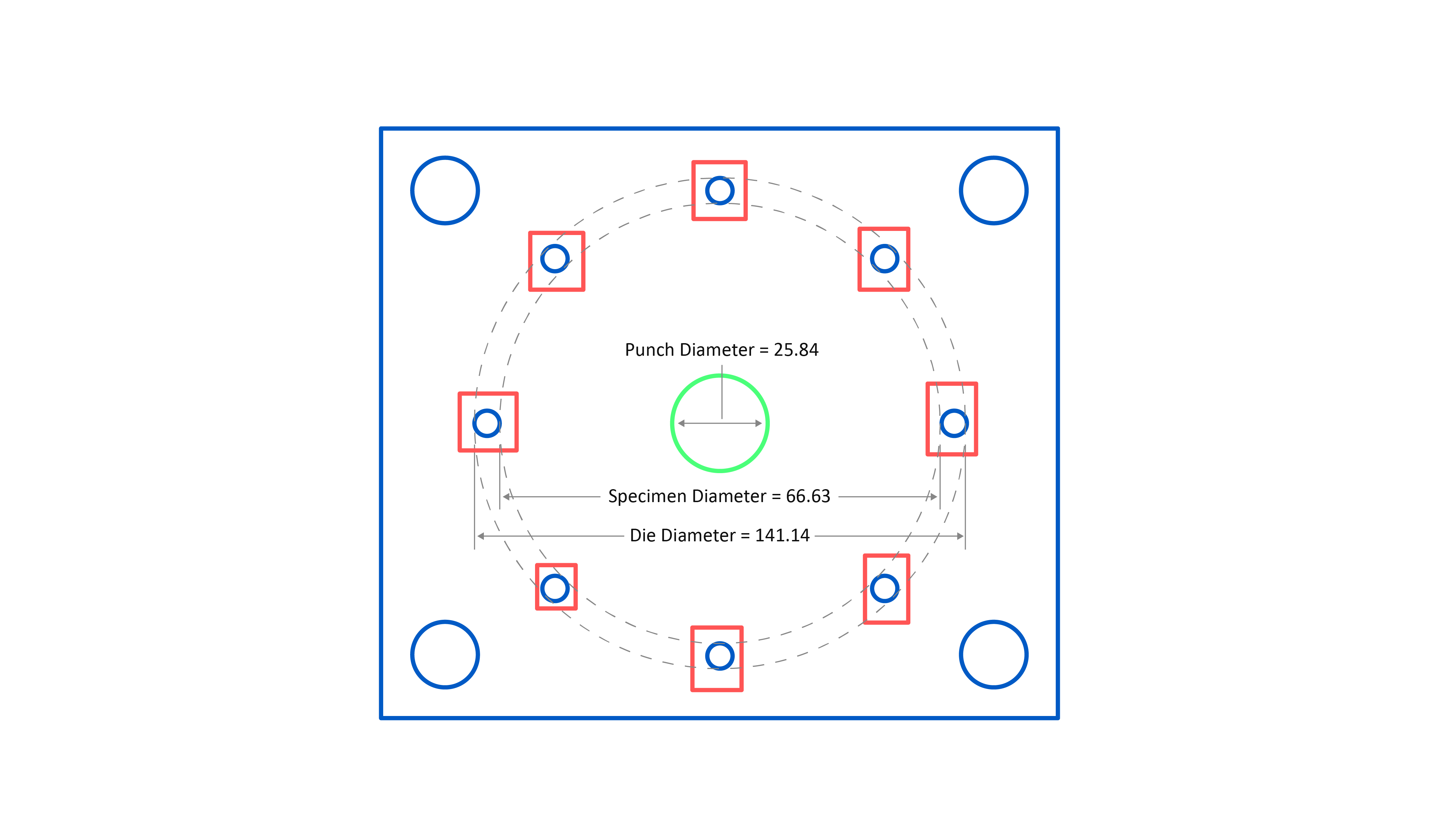

| punch_21mmdia_specimen76mmdia | 25.85 | 141.14 | 66.63 |  | ||

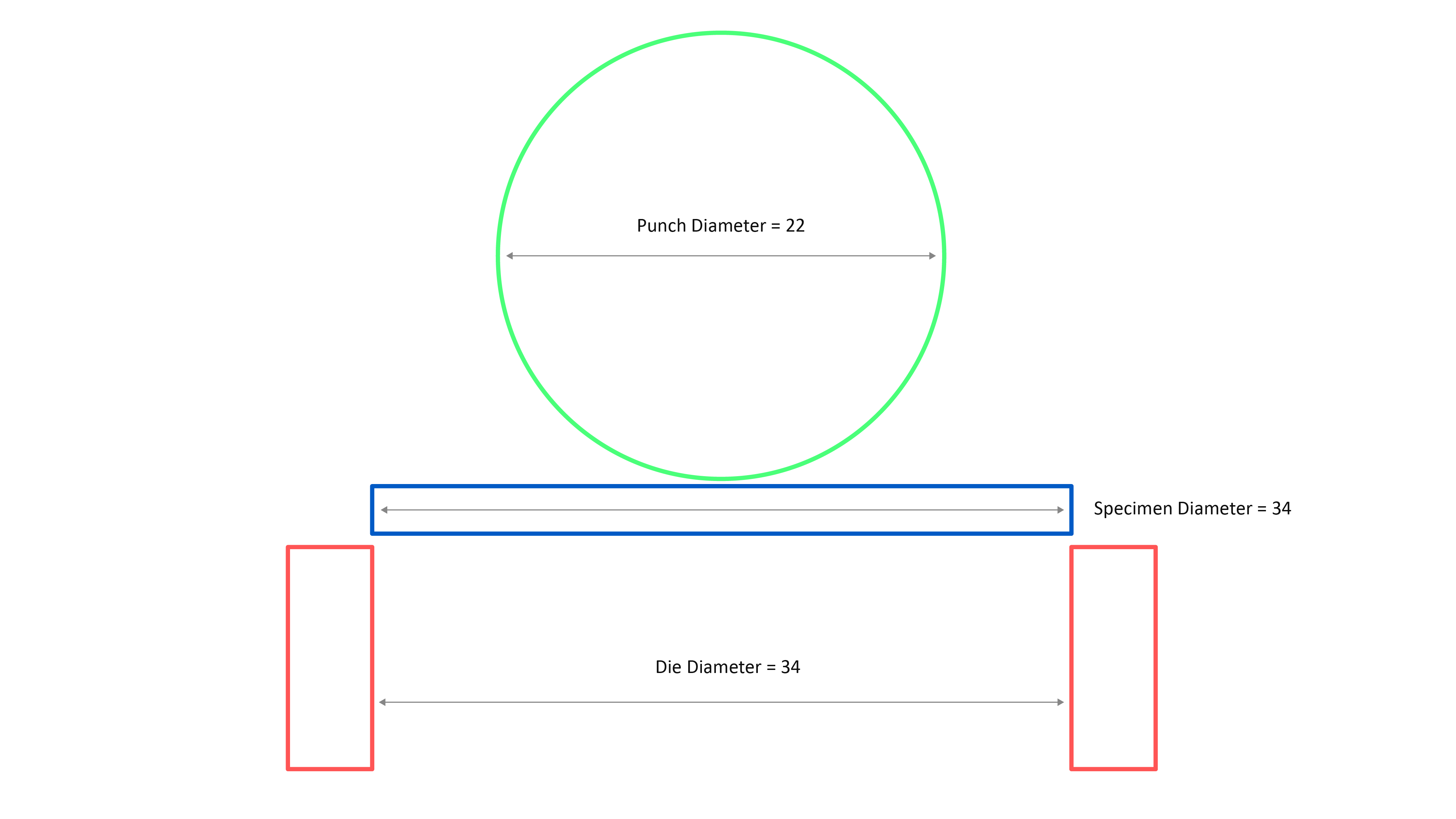

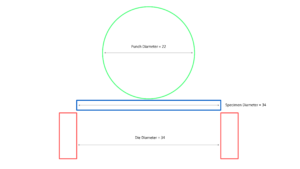

| punch_22mmdia_specimen34mm | 22 | 34 | 32 |  | ||

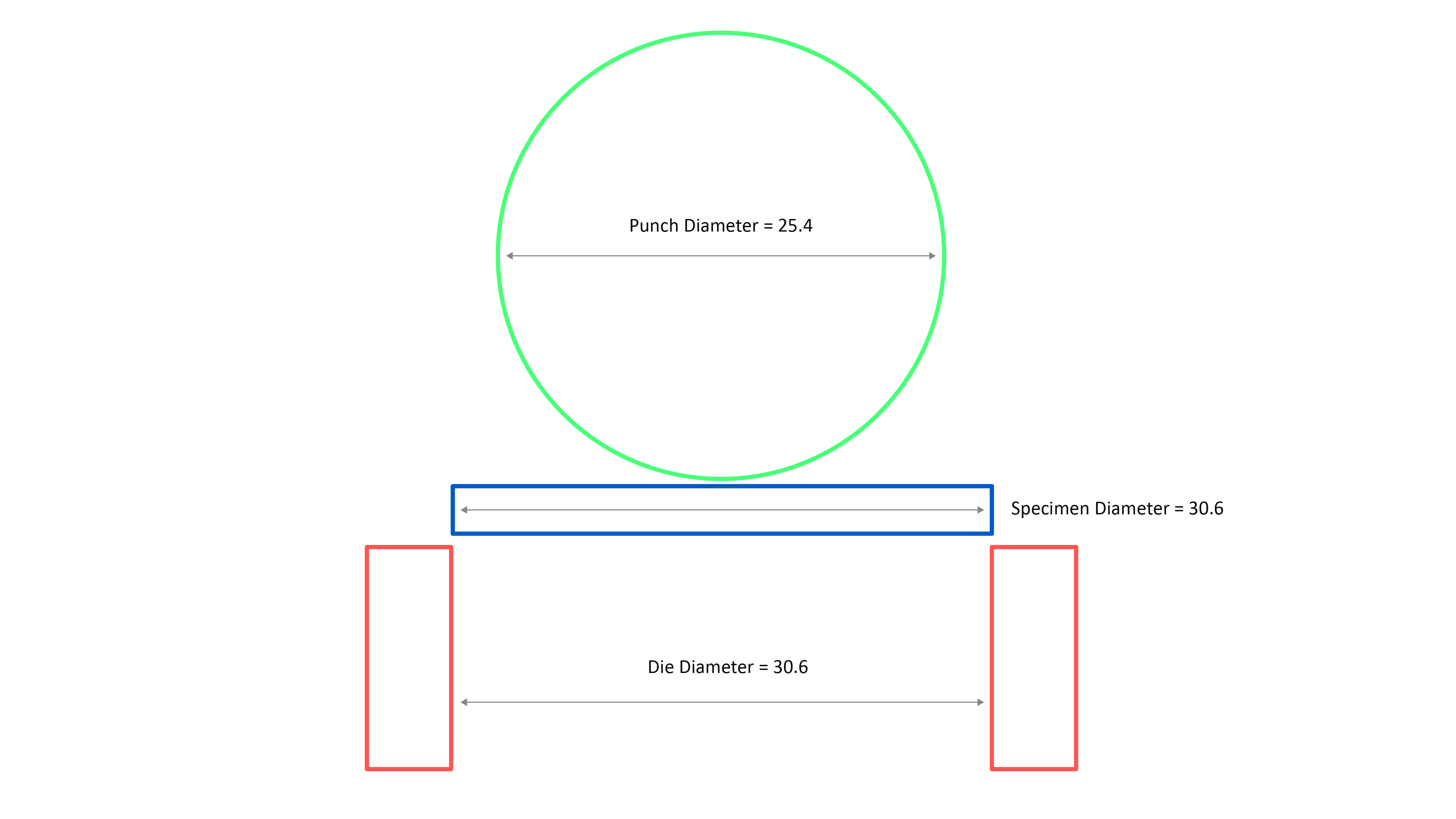

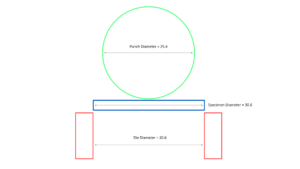

| punch_osu_v1 | 25.4 | 30.6 | 28 |  | ||
| punch_scaled | 25.4 | 30.6 | 28.8 |  | ||

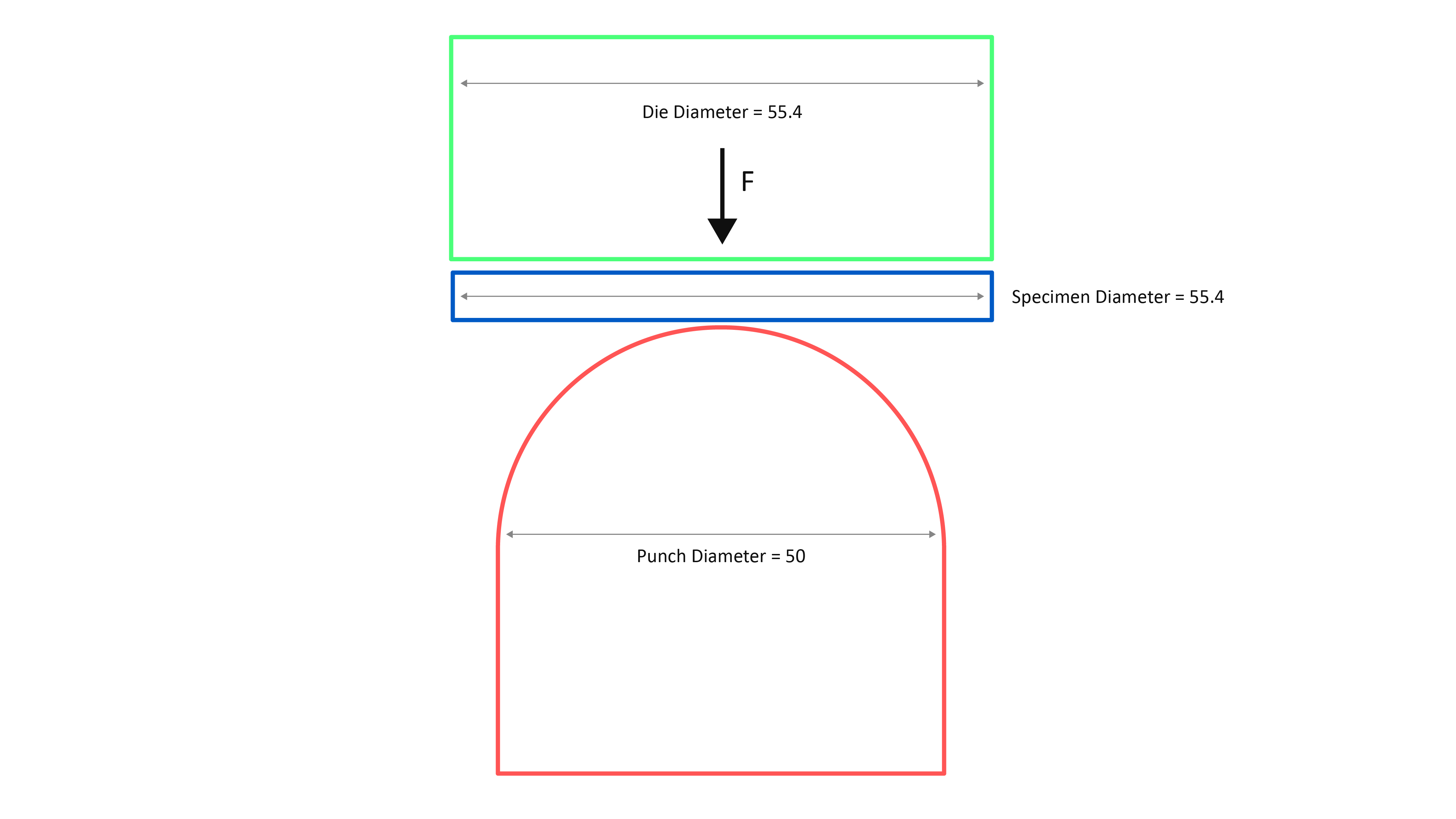

| punch_crf | 50 | 55.4 | 55.4 |  |

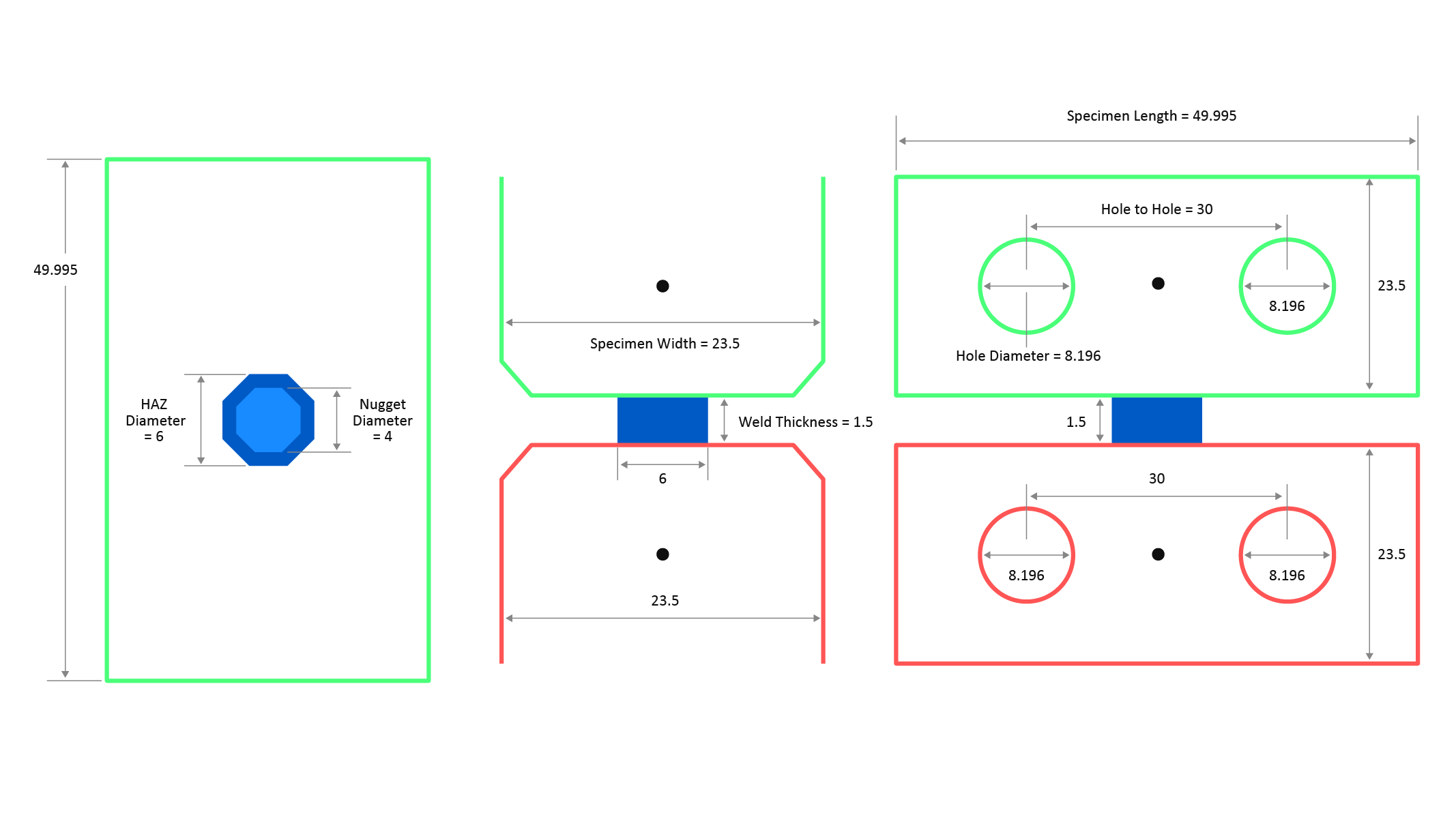

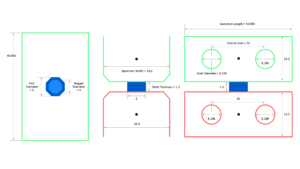

KS-II Material Specimen Types
| Name | Specimen Width | Specimen Length | Nugget Diameter | HAZ Diameter | Weld thickness | Hole Diameter | Hole to Hole | Image | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KS-II tension | 23.5 | 49.995 | 4 | 6 | 1.5 | 22.75 | -0.75 | 8.196 | 30 |  |
| KS-II Shear | 23.5 | 49.995 | 4 | 6 | 1.5 | 22.75 | -0.75 | 8.196 | 30 | |
| KS-II 30 deg | 23.5 | 49.995 | 4 | 6 | 1.5 | 22.75 | -0.75 | 8.196 | 30 | |
| KS-II 45 deg | 23.5 | 49.995 | 4 | 6 | 1.5 | 22.75 | -0.75 | 8.196 | 30 | |
| KS-II 60 deg | 23.5 | 49.995 | 4 | 6 | 1.5 | 22.75 | -0.75 | 8.196 | 30 | |
| KS-II 90 deg | 23.5 | 49.995 | 4 | 6 | 1.5 | 22.75 | -0.75 | 8.196 | 30 | |
Spotweld Material Specimen Types
| Name | Length | Width | Nugget Diameter | HAZ Diameter | Weld thickness | Diameter of bend | Joint height | Adhesive height | Hole Diameter | Hole to Hole | Overlap Length | Image |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Coach Peel | 94.8 | 15 | 4.98 | 8.5 | 4 | 7.08 | 15.1 | 4.98 | 82.39 |  | ||
| Lap Shear | 175 | 25 | 4.98 | 8.5 | 5 | 8.36 | 150.19 | 25 |  | |||
| Cross Tension | 150 | 49.94 | 4.98 | 8.5 | 5 | 19.62 | 100 | 50 |  | |||
| Plate Coach Peel | 76.5 | 25.75 | 7.7 | 8.278 | 24.97 | 65.84 |  |
